In our previous Knowledge Hub, we explored "How to Select a High-Quality Gas Filter" and emphasized that in the vast majority of applications requiring hydrophobic membrane filters, the filter should achieve as many of the following ideal characteristics as possible:
The filter must be capable of retaining microorganisms even under adverse conditions, such as high humidity.
The filter must possess high thermal and mechanical resistance to ensure long-term use under required conditions.
The filter must withstand multiple steam sterilization cycles.
The filter must deliver high flow rates under low differential pressure conditions.
The filter membrane should be hydrophobic to resist water blockage.
The filter should have an optimized structure to achieve a long and reliable service life.
The filter should be non-fiber-releasing.
The filter must be integrity-testable in a manner correlated to its retention efficiency.
The filter should be easy to install and maintain.
The filter's materials of construction should be suitable for the intended application (e.g., filtering oxygen).
The necessity and importance of these characteristics have been strongly validated across a wide range of practical application cases. In this session, we will explore the diverse application scenarios of gas filters and witness how they play an indispensable role in the pharmaceutical industry.
According to the specific sterility requirements during actual application processes, PDA Technical Report No. 40 categorizes gas filter applications into three tiers:
"The most critical applications refer to sterile gas applications, where the filtered gas comes into direct contact with sterile drugs or critical surfaces of associated equipment."
Compressed air filters associated with aseptic filling equipment;
Protective gas filters or vent filters for sterile product storage tanks;
Vacuum-breaking gas filters for lyophilizers and critical autoclaves.
"Secondary applications involve filtered gases that do not come into direct contact with sterile products or sterile surfaces."
Many intermediate process steps or aeration applications for fermenters.
"Filters used solely to reduce bioburden have lower requirements, as the expectations for such filtration are similar to those for HEPA filters."
Expanding on this, the applications can be primarily divided into the following eight specific scenarios:
01 Gases in Contact with Products
The most widespread and critical application of sterilizing-grade hydrophobic membrane filters is where the filtered gas comes into direct contact with the product. For example, nitrogen is widely used to protect oxidation-prone products and reduce degradation. Any gas that contacts the drug solution must be sterile to maintain a low bioburden for terminally sterilized products, or to maintain the sterility of aseptically filled products. This includes process gases in storage tanks or gases in the headspace of product vials and ampoules. Due to the critical nature of these applications, the use of hydrophobic membrane filters validated through rigorous liquid microbial challenge tests is highly recommended.
In many critical operations, redundant filter configurations (tandem filter sets) are frequently used, though not strictly mandatory. Filters must be routinely integrity-tested to ensure filtration performance. The selection of membrane materials should consider the operating conditions, especially if the filter requires steam sterilization or Steam-in-Place (SIP).

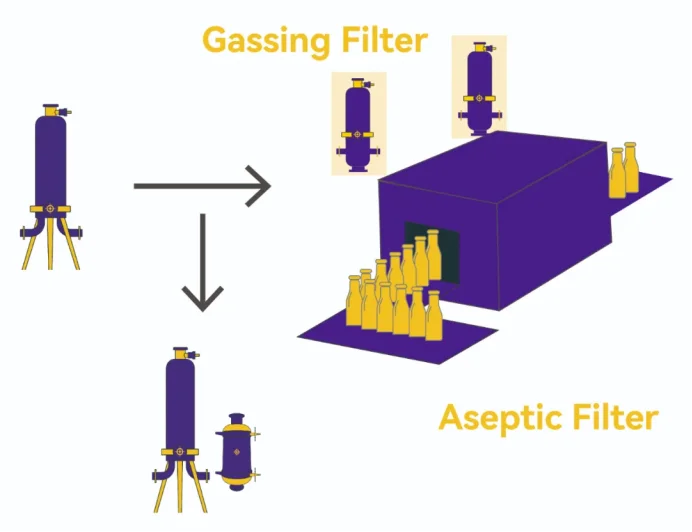

[Image: Aseptic Filling]
02 Fermenter Inlet Air Filters
The volume of air required to maintain the fermentation process depends on the process and the volume of the culture medium, and the filtration system should be scaled accordingly. Large fermenters consume millions of cubic meters of air annually, thus requiring massive filtration systems. The air supply must be highly reliable to provide the necessary oxygenation conditions for the culture, and it must be sterile to avoid costly contamination issues.
Filters used in fermentation processes should meet high microbial retention standards and provide high airflow rates with a low pressure drop (1–5 psig). These filters should utilize high-porosity hydrophobic membranes while still ensuring reliable microbial retention. The filter cartridge structure should be optimized to prevent water blockage. The filter assembly also requires high thermal and mechanical stability, as it must withstand numerous high-temperature sterilization cycles for process economy.
03 Fermenter Exhaust Gas Filters
The application of fermenter exhaust gas filters is on the rise. The challenge in this application lies in the high microbial contamination levels and high humidity of the exhaust gas. As the gas flow cools, condensation occurs, which can lead to an undesirable increase in pressure at the top of the fermenter. Appropriate design choices, such as protective coalescing pre-filters and heated filter housings, can be selected to avoid water blockage.
The exhaust system should be designed to prevent condensate and coalesced aerosols from entering the filter; a common practice is to return the condensate from the exhaust gas back into the fermenter. Foam generated during fermentation may also enter the exhaust gas and block the filter; therefore, system design and operation must avoid foaming. Antifoaming agents can be added, or the fermentation medium can be modified to reduce foam. In more challenging processes, mechanical separators can be installed to eliminate the risk of foam and filter blockage.
04 Vent Filters for WFI and Product Tanks
When adding or withdrawing liquid from a storage tank, an equivalent volume of air must be removed from or introduced into the tank. In critical applications, to prevent microbial contamination of the contents, the air must be filtered through a sterilizing-grade filter.
This is also true when steam-sterilizing a storage or transfer tank, as the air entering the tank at the end of the sterilization cycle must also be sterile. Beyond the harsh steam sterilization cycles, another challenge in this application is the blockage of airflow caused by moisture trapped in the membrane. It is particularly crucial to avoid the blockage of the vent filter at the end of steam sterilization. As the tank cools, steam condenses into water, creating a vacuum. This vacuum level can be estimated using the ideal gas law or by consulting steam tables (Cole, 1977; Meltzer, 1987b). For example, at 100°C, one liter of steam will condense into just 0.6 ml of water, representing a volume reduction of nearly 1,700 times.
Since the volume change during condensation occurs rapidly, the vent filter must be appropriately sized to supply an equivalent volume of air within a very short timeframe. If proper measures are not taken to prevent the interruption of airflow through the vent filter, the resulting vacuum could damage the tank. For tanks designed to withstand vacuum, this is less of an issue, but incorporating vacuum-resistant features significantly increases tank costs. Other design solutions can also prevent tank collapse. For instance, connecting the vent filter to compressed air at a sufficiently high pressure can displace the moisture within the pore structure. Careful consideration should be given to preventive measures such as heated filter housings.
To avoid various blockage-related issues during the use of gas filters, careful consideration of filter sizing is essential. Installing an appropriately rated rupture disk on sealed tanks is a prudent practice. However, relying on this component carries the risk of product loss and implies considerable downtime for replacing the part and re-cleaning and steam-sterilizing the system.
05 Vacuum Breaking in Lyophilizers and Autoclaves
The air (gas) entering the chamber of a lyophilizer will come into direct contact with the sterile product. Similarly, the air entering an autoclave will directly contact sterile items or equipment. Therefore, in these scenarios, the air used to break/release the vacuum at the end of the lyophilization and sterilization cycles must also be sterile. Condensation can cause airflow collapse and adversely affect operations; appropriate preventive measures should be taken. Filter assemblies in this application need to be sterilized, mostly via Steam-in-Place (SIP). Recommendations from the filter supplier regarding SIP or steam sterilization should be strictly followed, especially when reverse steam flow is required.
In this application, since the filter may need to undergo repeated steam introduction or sterilization cycles, it must be durable and regularly integrity-tested to ensure the expected microbial retention level. Ease of integrity testing, as well as convenient filter replacement and operation, are highly important in such applications.
06 Gases for Drying and Filling Line Material Transfer
Certain components (such as rubber stoppers) and large equipment (such as storage tanks) are typically rinsed with Water for Injection (WFI) and then dried after steam sterilization. Drying is particularly critical when used for sterile products in oil-based formulations. Compressed air is often used to accelerate the drying process. Additionally, in many production processes, appropriate gas is used to pressurize the top of the tank to facilitate the transfer of sterile bulk drug substance to the filling line. The gas used in these critical operations must be sterile and free of particulates; therefore, appropriate filters must be selected and routinely sterilized and integrity-tested to ensure the expected microbial retention capability.
07 Blow-Fill-Seal (BFS) Equipment
Blow-Fill-Seal operations require large volumes of compressed air. Typically, the equipment is equipped with several different air filtration systems to provide sterile air to various process steps, such as mold-making where the container directly contacts the product, or shielding and protecting critical parts of the equipment from contamination by ambient air containing microorganisms and particulates.
During the filling operation, the filtered air contacts critical surfaces and the product; therefore, appropriate filters must be selected and validated to ensure high-level microbial retention. Since BFS operations usually run for extended periods, the filters used must be reliable and durable. Filters must be routinely sterilized and integrity-tested to ensure the expected retention performance is achieved.
08 Ambient Air in Isolators
Over the past few decades, isolator technology has been widely applied in critical operations such as sterility testing, aseptic filling, sterile weighing, and handling, and it is even used for non-sterile highly potent compounds. Depending on the application, isolators can operate under positive or negative pressure relative to the surrounding environment. Regardless of the operating mode, the filtration used for make-up air and exhaust air plays a vital role.
Hydrophobic membrane filters can serve as alternatives to traditional depth filters, such as the conventional use of HEPA filters to achieve air exchange between the isolator and the surrounding environment. The stricter the operational requirements—whether filtering toxic powders from the exhaust or allowing sterile air into the isolator—the stricter the requirements for executing retention validation and integrity testing protocols
Conclusion
The above is our detailed exposition on the practical application scenarios of gas filters in this Knowledge Class. In short, different end-user application scenarios impose varying performance requirements on gas filters. Therefore, filter manufacturers should closely align their product development and process validation efforts with the actual performance needs of the end-users. In the next session of our Gas Filter Knowledge Hub, we will delve into the sterilization technologies for gas filters. Stay tuned.
