Disc Depth Filter
Alidep® disc depth filters have a variety of filter media combinations. Filter media are mainly composed of cellulose, filter aid and positive-charged resins or pure cellulose, and thus have high throughput. Filters are mainly used for pre-filtration and clarification in virus filtration, improve the robustness of virus filtration operations by efficiently removing impurities, such as protein aggregates.
Key Features and Benefits
Flexible media selection to optimize customer product development
Adapted to current mainstream virus filters.
Strict production control and release testing, reliable performance, and low process risk.
Product Specifications
Product Specifications
| Effective Filtration Area | 5 cm2 |
| Filter Media | Cellulose, filter aid, resin or cellulose |
| Frame and Supporter | Glass fiber reinforced polypropylene |
| Inlet and Outlet | Luer connector |
| Pressure Leak Test | <50 mbar @ 3.0 bar |
| Max Operation Pressure | 3.0 bar @ 25℃ Forward：3.0 bar @ 25℃ |
| Max Pressure Differential | Reverse：not recommended |
| Sterilization Resistance | Autoclave: 125℃ 60min, 2 cycles |
| Indirect Food Additive | All component materials meet the requirements of Indirect Food Additive cited in FDA 21 CFR 177-182 |
| Toxicity | All construction components meet the biological safety requirements refering to USP <88> Class VI plastic |
| Bacterial Endotoxin | The endotoxin level of rinsing liquid is <0.25 EU/mL, which complies with the requirements for water for injection in Chinese Pharmacopoeia and United States Pharmacopoeia |
Validation Methods and Results

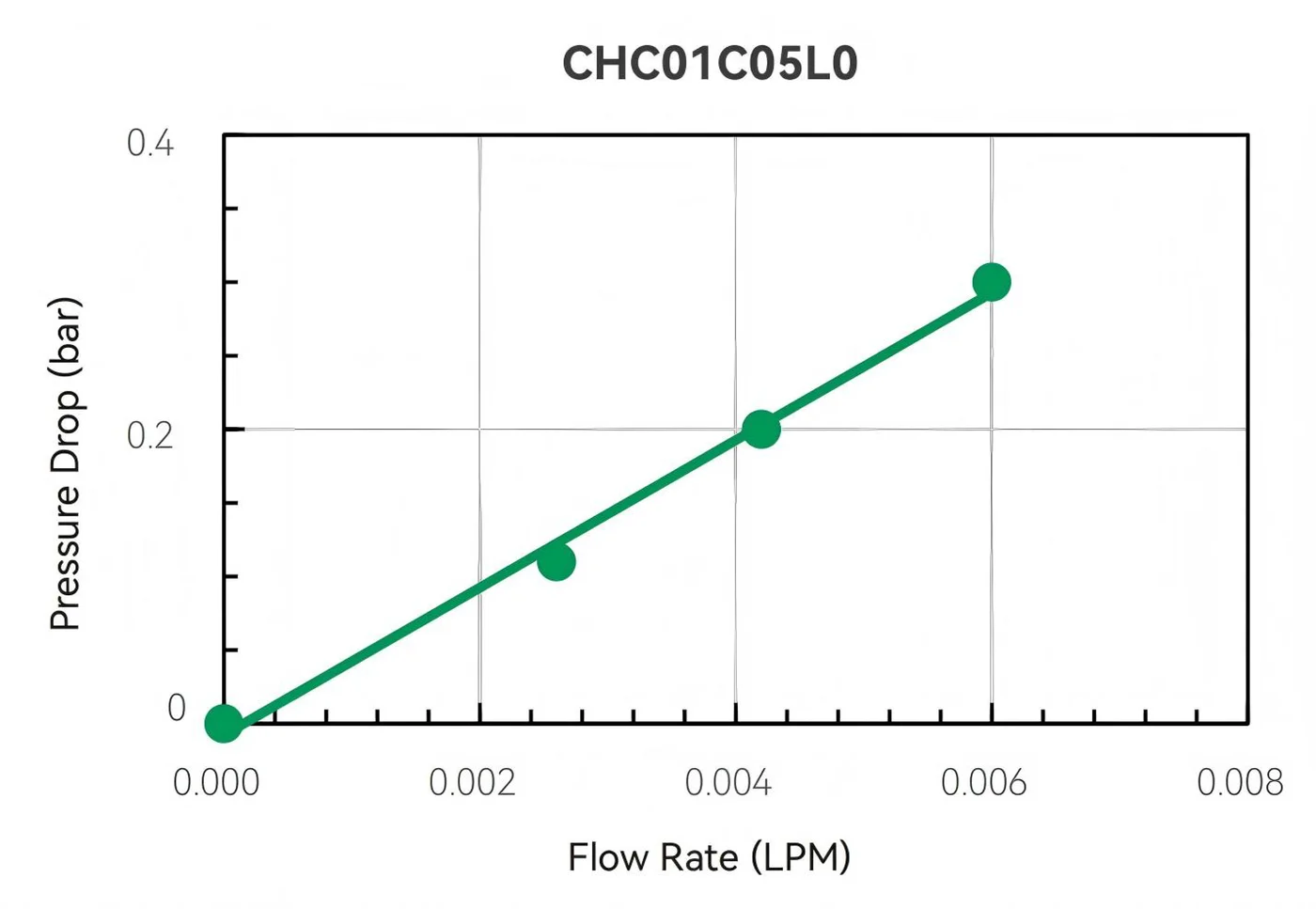

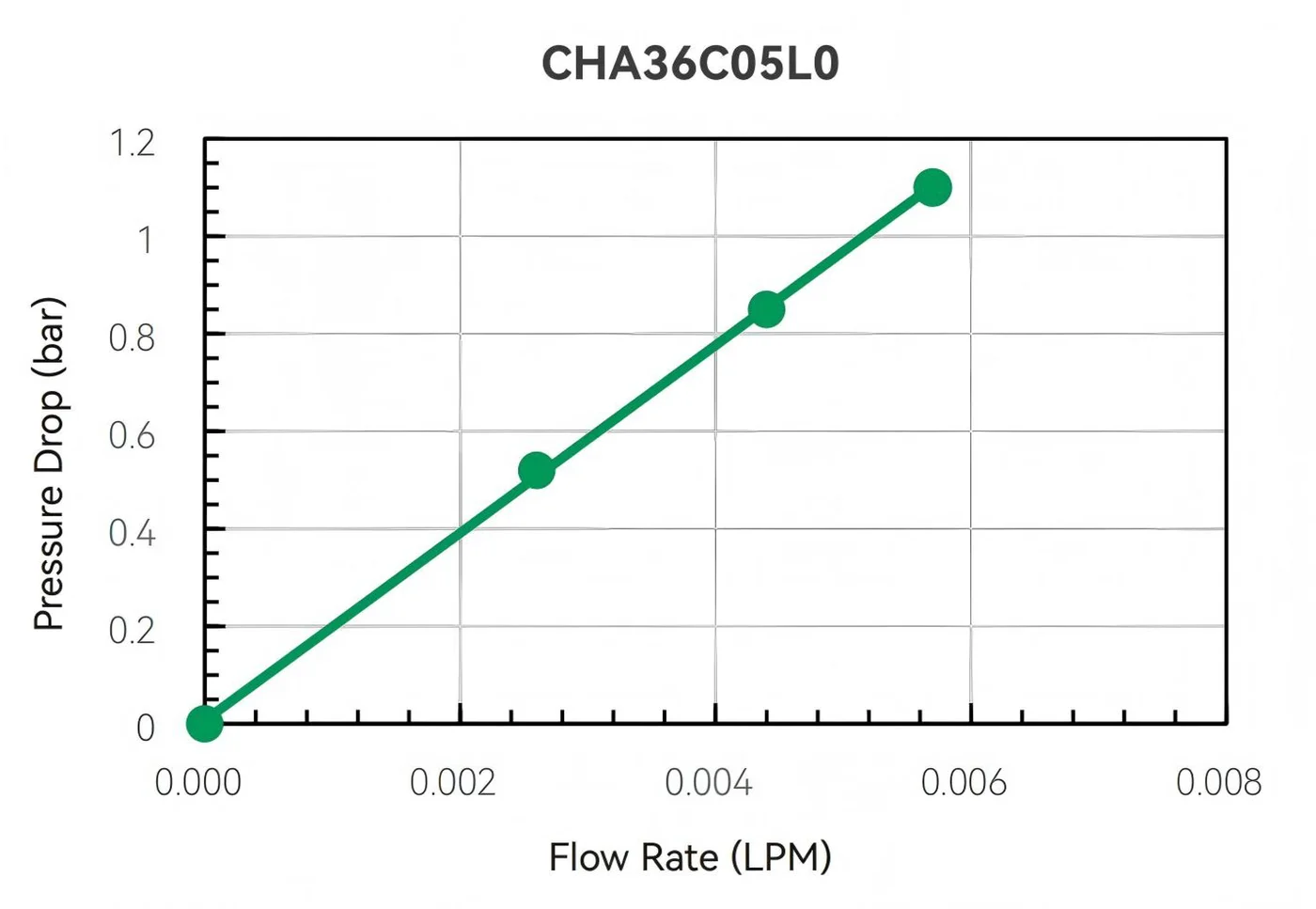

Test Results of Flow and Differential Pressure
Test Results of Flow and Differential Pressure
Validation Summary
| Endotoxin | Several filters were randomly selected from different production batches, then rinsed with 100 L/m2 pure water for 10-20minutes, followed by soaking in pure water for 24 hours. The endotoxin level was < 0.25 EU/mL as indicated by Tachypleus Amebocyte Lysate test. |
| Endurance to Sterilization | Several filters were randomly selected, after 2 cycles of autoclave at 125℃ for 60min, filters passed pressure leak test. Flow rate and pressure drop after autoclave met the product quality standard. |
Ordering Information
Product format
- C=Depth Capsule Filters
Media type
- HA01, HA02..
- HC01, HC02..
- ACA01, ACA02..
- CE01, CE02..
Dimension
- C05=5 cm2
Adapter
- L0=Luer
Package quantity
- 9=9 EA/pkg
Resource Downloads
Alidep® Disc Depth Filter.pdf
PDF · 467.76 KB · Published on 2026-05-11
