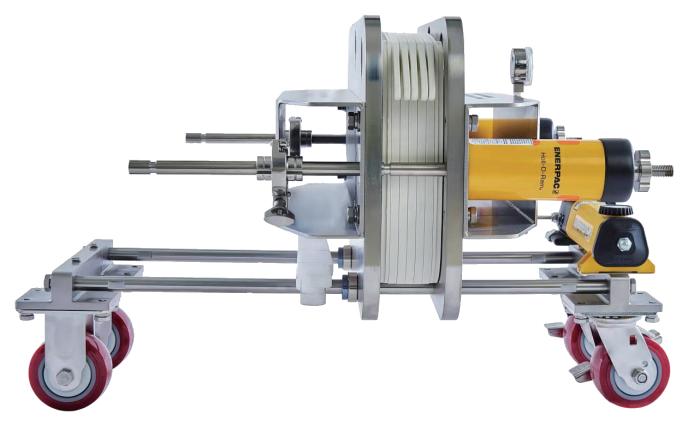

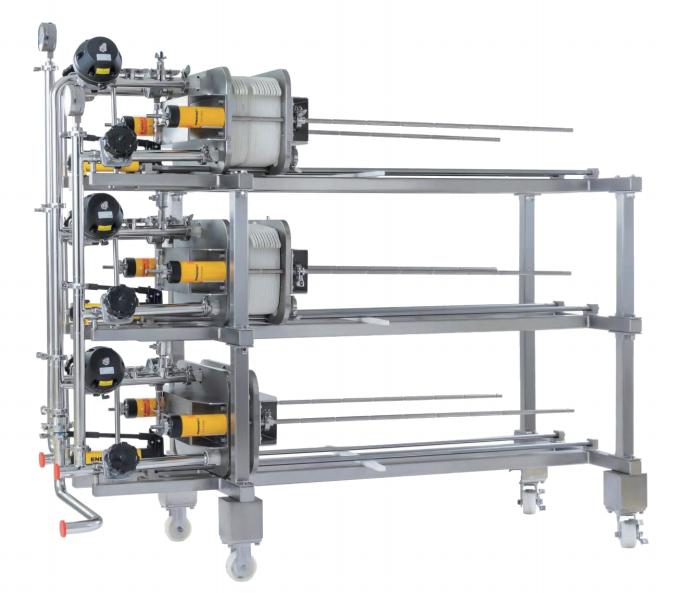

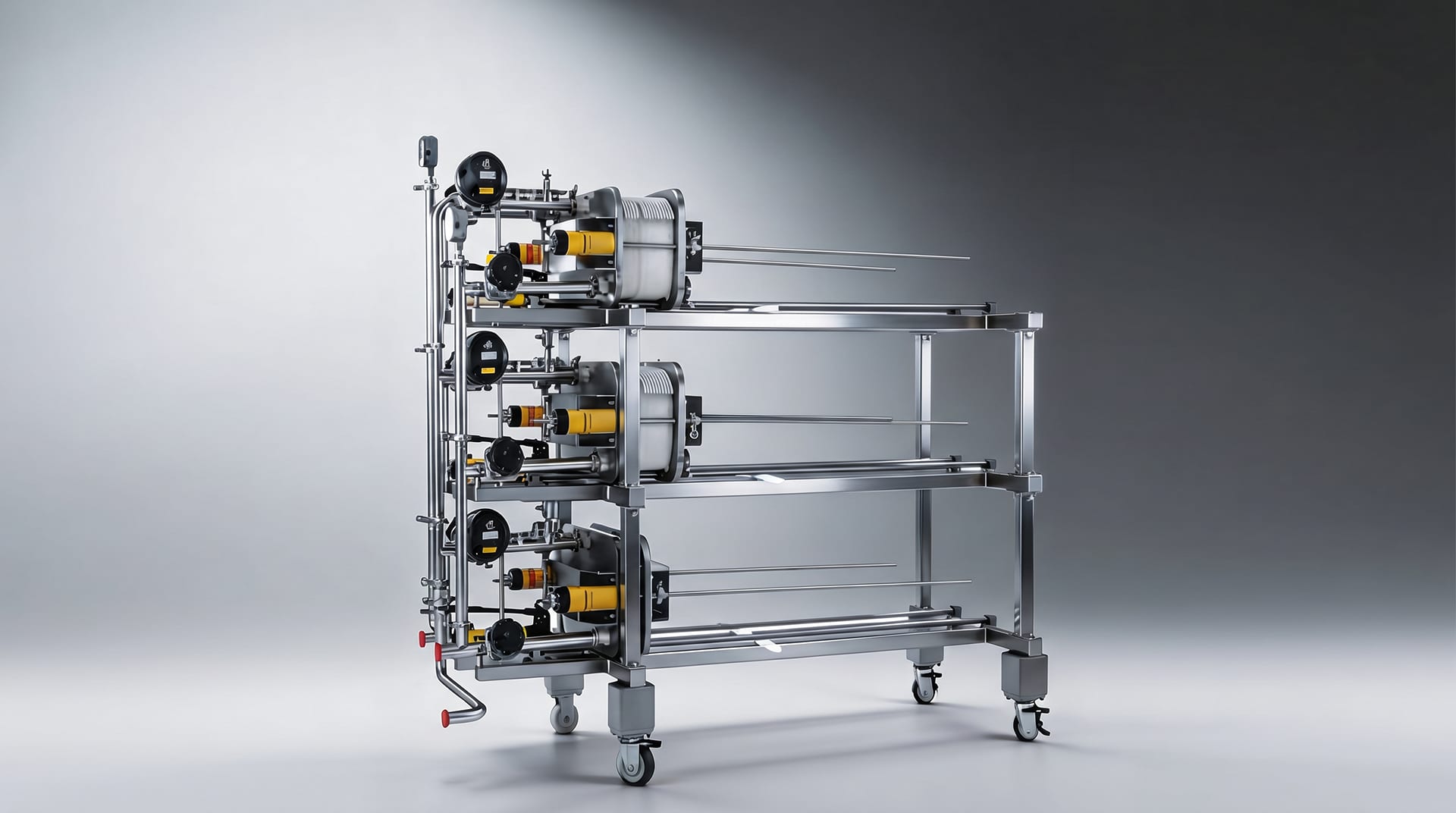

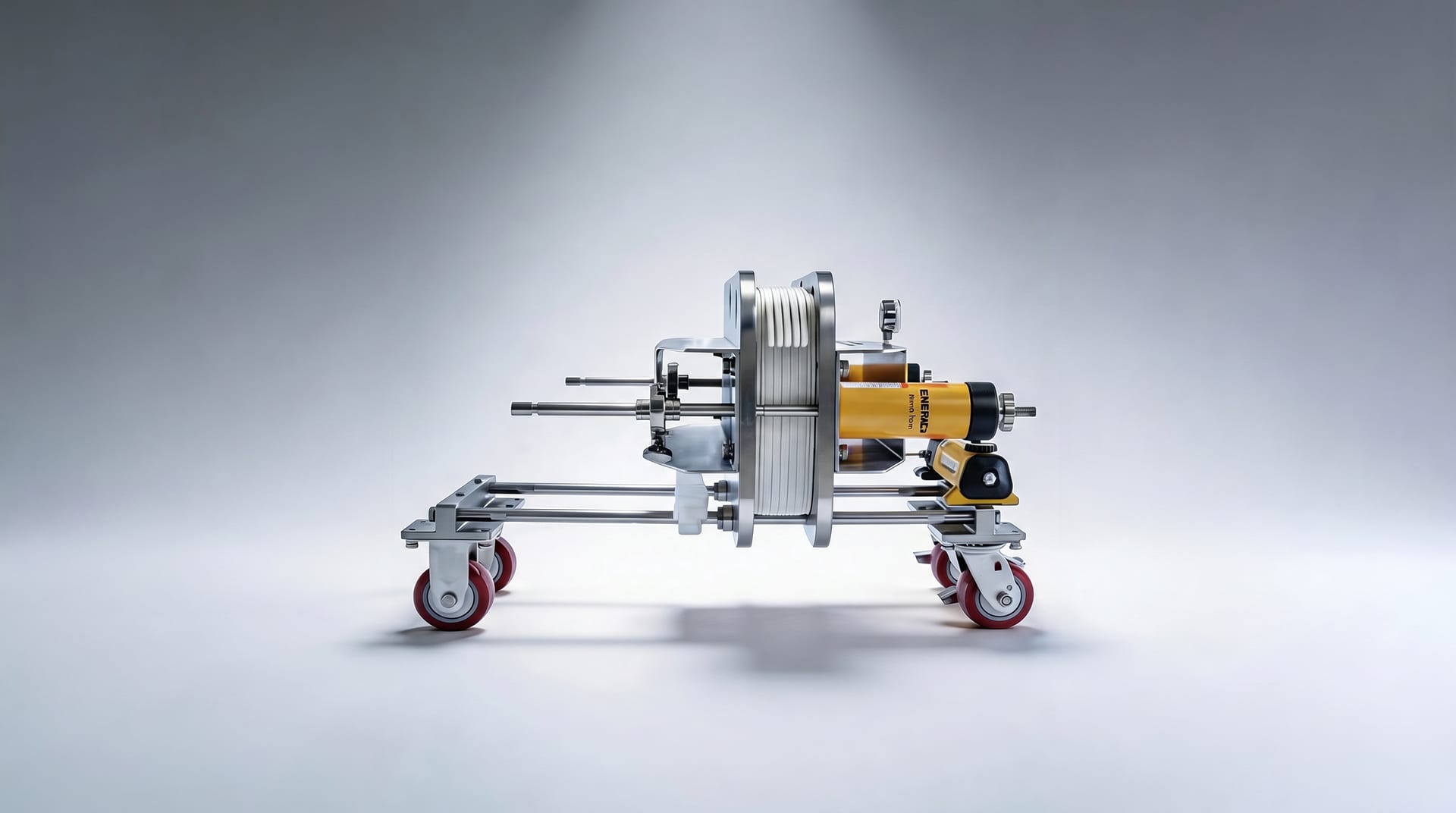

Depth Filter Holder, M Type
Alioth stainless steel depth filter holder M type is commonly used to hold depth filter holder of a specific area. With the help of a specific power source, it allows material liquid to pass through the depth filter, thus achieving the purpose of separating impurities from liquid. When used in combination with Alioth-produced depth filter, it can support the needs for different scales of production and use. Made from 316L stainless steel, it meets the requirements of pharmaceutical industry. The equipment is simple, structurally robust, and easy to install and use. It is also compatible with common plate-type depth filter holders from other brands.
Key Features and Benefits
Made from 316L stainless steel
Surface finish Ra<1.2 μm, liquid contact surface finish Ra<0.6 μm
Diaphragm valves and pressure gauges, which meet cGMP's requirements for designing sanitary dead angle in the structure conforming to pharmaceutical-grade standards
Equipped with stainless steel pipeline, and also compatible with disposable pipeline
Equipped with hydraulic device and depth filter holder; effort-saving, safe and easy operation
Compatible with major brands of depth filter holders in the market
Available in a full range of specifications for laboratory research scale, clinical pilot production scale, and commercial large-scale production
Resistant to acids, alkalis, organic solvents, etc., and meeting SIP / CIP as well as cleaning validation requirements
Adopt industry-standard chuck interface connection
Can be specially customized according to the requirements of customer
Product Applications
Clarification step in monoclonal antibody production process
Clarification step in recombinant protein production process
Clarification step in vaccine production process
Clarification step in blood product production process
Product Configuration
Alioth depth cartridge filter is connected to process pipelines through disposable connectors, forming disposable flow passage
Disposable separation plate allows installation of more than one filter models on a single-layer holder
Product Documentation Package
CoQ
Basic drawings of the product
Maintenance guide and operation manual
Calibration certificates of instruments
Material certification documents
Certification document of surface finish
FDA certificate for hydraulic oil
Seal component 2.2 certificate
EN 10204 certificate for flow passage component
IQ/OQ validation service and documents
List of spare parts
Custom files related to other customized products
Product Specifications
Product Specifications
| Type | 2.2 m² | 5.5 m² | 11 m² | 22 m² | 33 m² |
| Dimension (length × width × height) | 81×64×51 cm 103×64×51 cm (including pipeline valves) | 133×73×100 cm 162×73×100 cm (including pipeline valves) | 196×73×100 cm 223×73×100 cm (including pipeline valves) | 199×89×117 cm 203×89×117 cm (including pipeline valves) | 195×89×157 cm 203×89×177 cm (including pipeline valves) |
| Data for reference only, dimensions subject to drawings | |||||
| Weight | 110–120 kg | 160–170 kg | 180–190 kg | 340–360 kg | 480–500 kg |
| Holder Baffle | SS 304 | ||||
| Liquid-contacting Part | SS 316L | ||||
| Surface Finish | Surface finish Ra<1.2 μm, liquid-contacting surface finish Ra<0.6 μm | ||||
| Equipment Frame | SS 304 | ||||
Ordering Information
Ordering Information
| Order No. | Product description | Package |
| DFHPRM2A2-1 | Depth Filter Holder M Type, 2.2 m2, with bottom liquid-contacting tray | 1/PK |
| DFHPRM2A2-2 | Depth Filter Holder M Type, 2.2 m2, with bottom liquid-collecting tray, valve, pressure gauge and fittings | 1/PK |
| DFHPRM5A5-1 | Depth Filter Holder M Type, 5.5 m2, with bottom liquid-contacting tray | 1/PK |
| DFHPRM5A5-2 | Depth Filter Holder M Type, 5.5 m2, with bottom liquid-collecting tray, valve, pressure gauge and fittings | 1/PK |
| DFHPRM11A-1 | Depth Filter Holder M Type, 11 m2, with bottom liquid-contacting tray | 1/PK |
| DFHPRM11A-2 | Depth Filter Holder M Type, 11 m2, with bottom liquid-collecting tray, valve, pressure gauge and fittings | 1/PK |
| DFHPRM22A-1 | Depth Filter Holder M Type, 22 m2, with bottom liquid-contacting tray | 1/PK |
| DFHPRM22A-2 | Depth Filter Holder M Type, 22 m2, with bottom liquid-collecting tray, valve, pressure gauge and fittings | 1/PK |
| DFHPRM33A-1 | Depth Filter Holder M Type, 33 m2, with bottom liquid-contacting tray | 1/PK |
| DFHPRM33A-2 | Depth Filter Holder M Type, 33 m2, with bottom liquid-collecting tray, valve, pressure gauge and fittings | 1/PK |
Resource Downloads
Alioth Stainless Steel Depth Filter Holder M Type.pdf
PDF · 869.36 KB · Published on 2026-05-11
