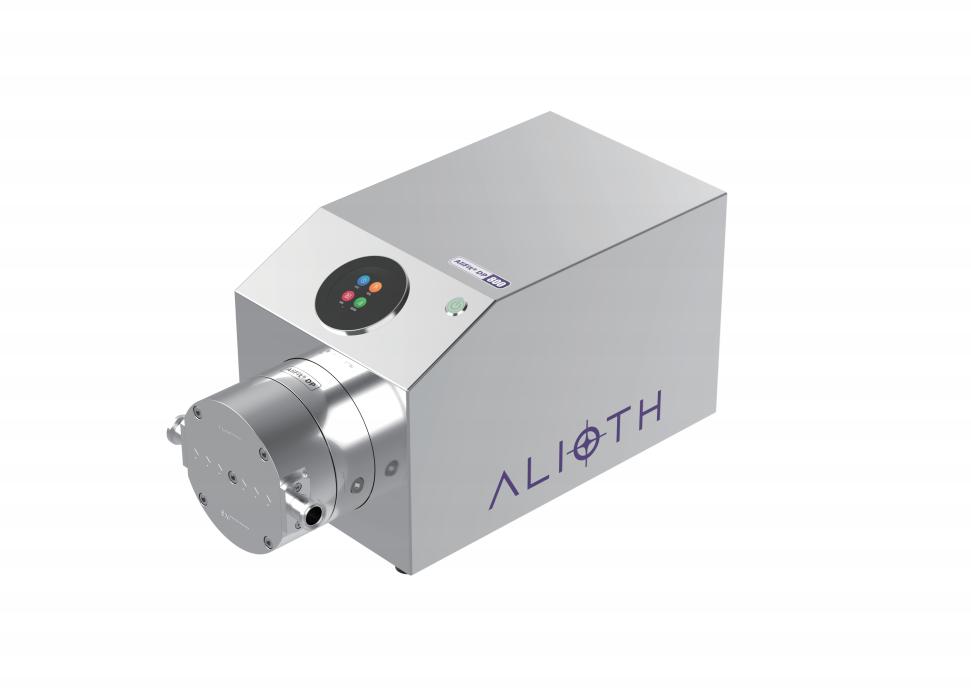

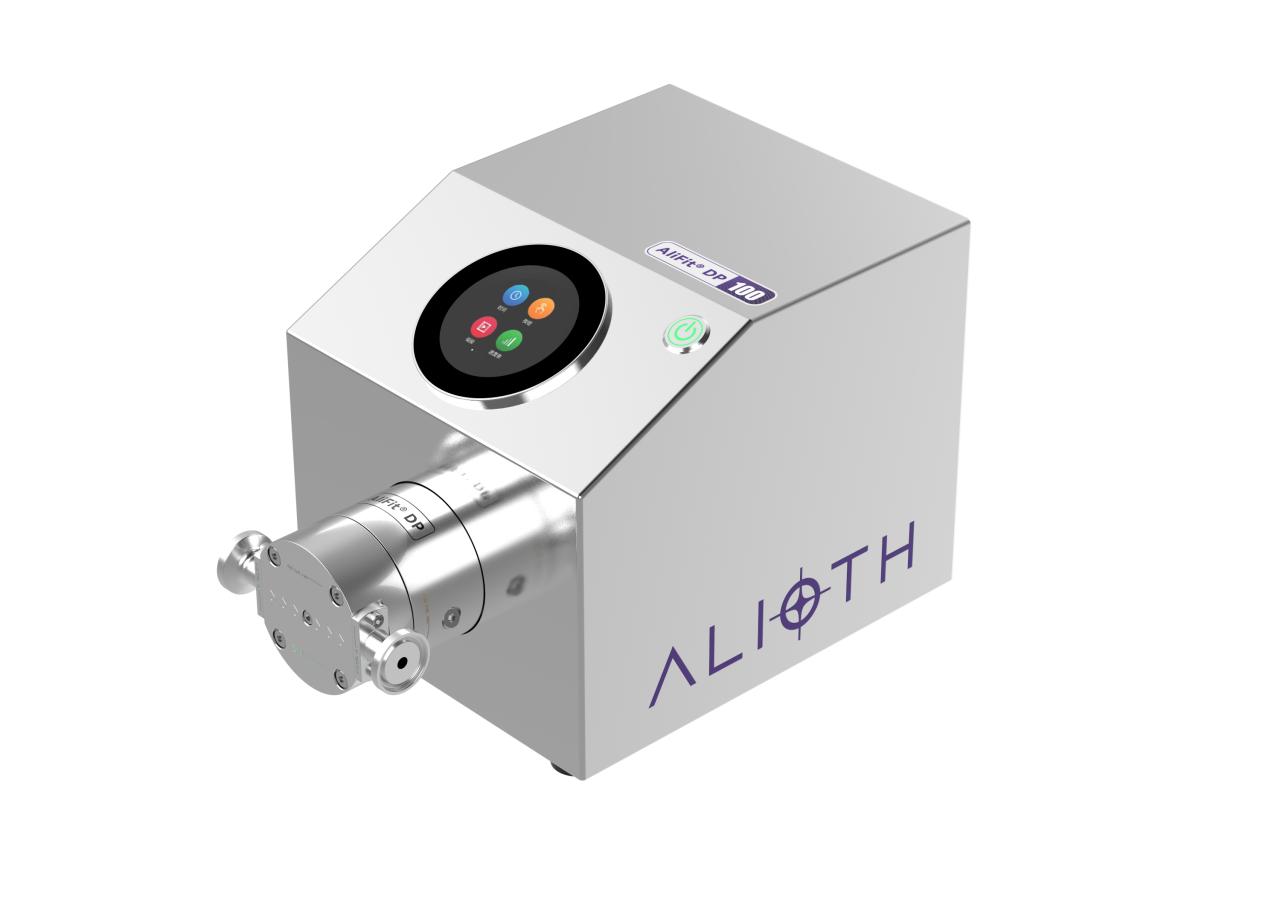

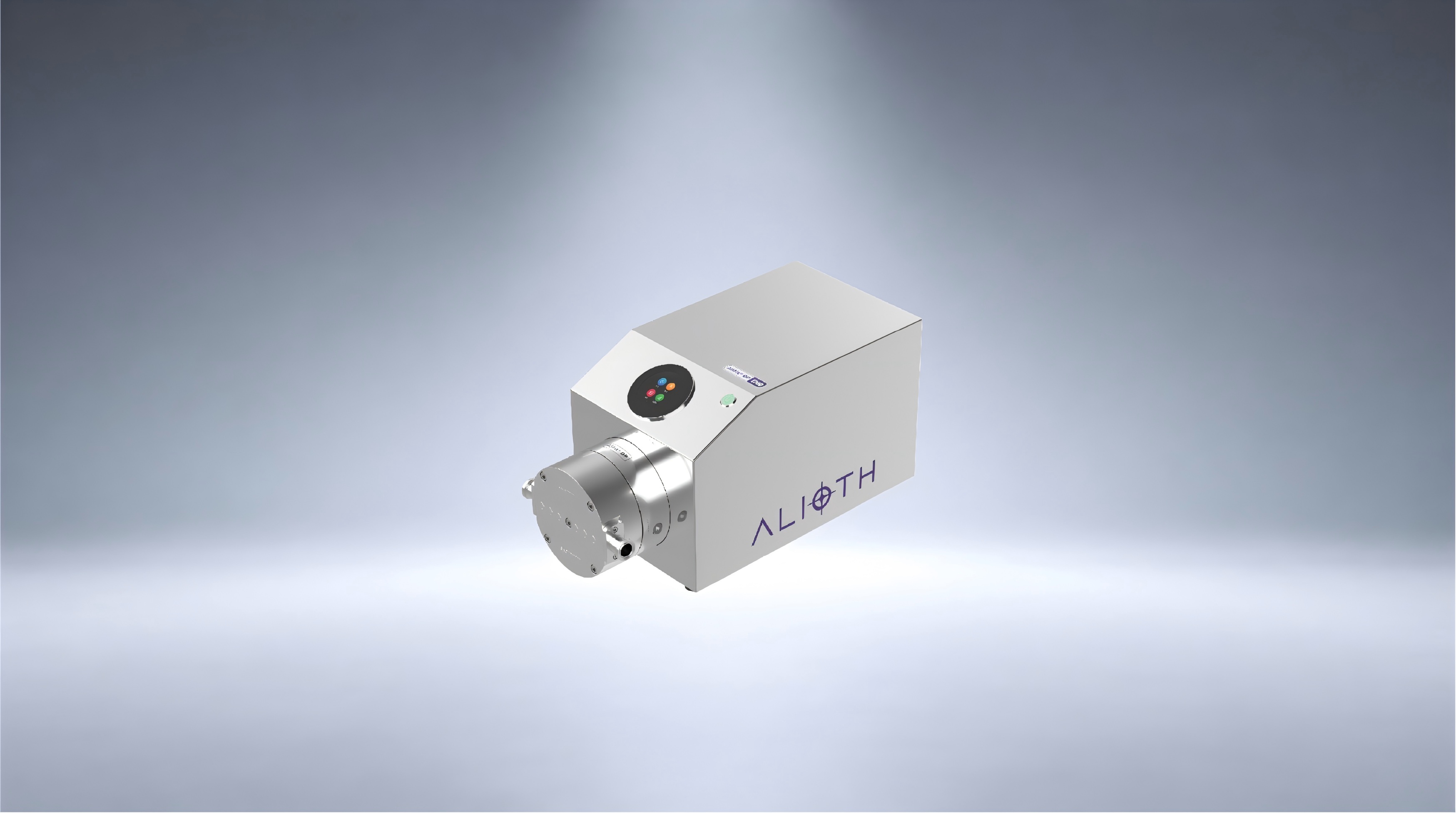

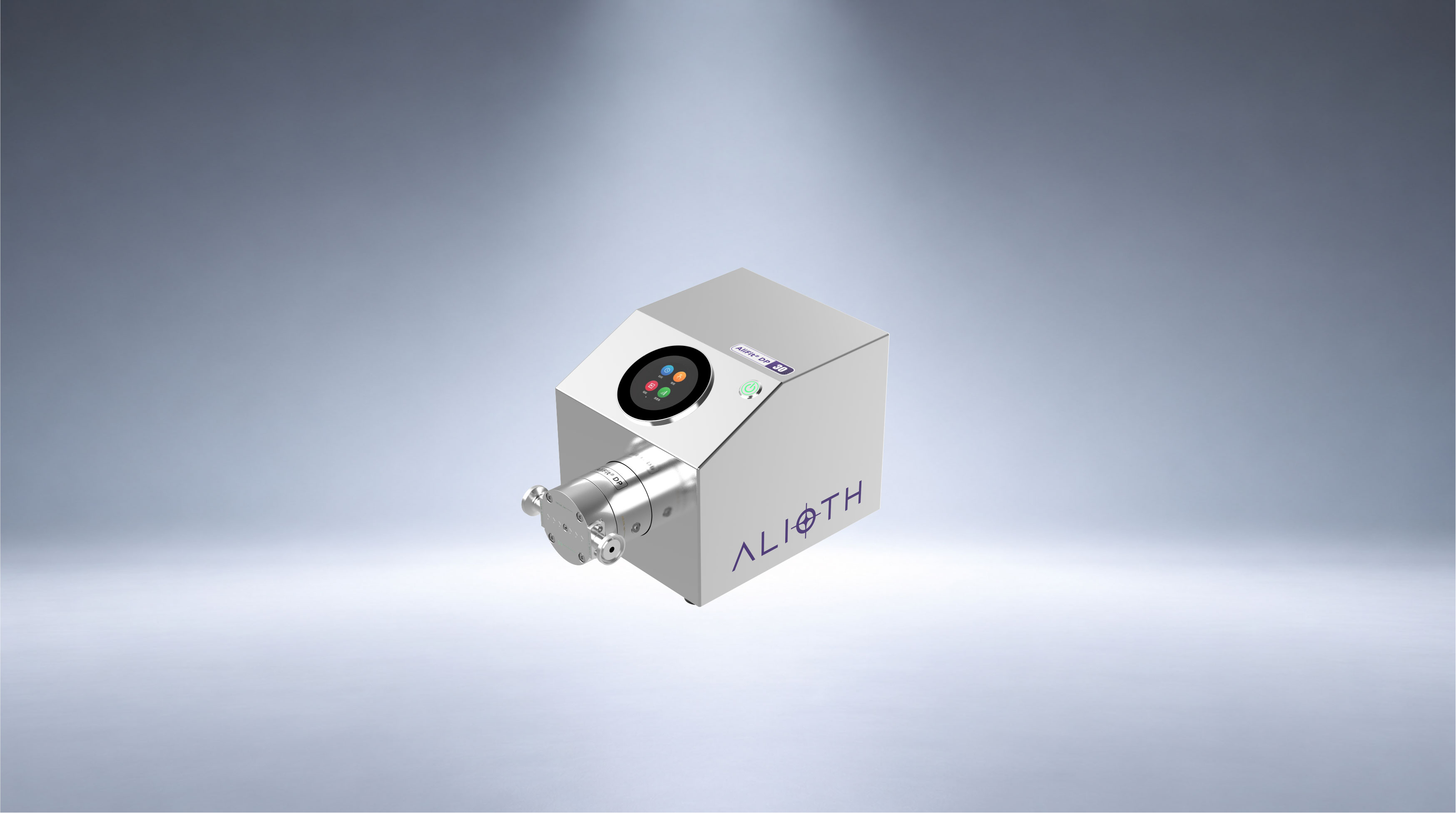

High-Precision Diaphragm Pump
Alioth cGMP-compliant High-precision diaphragm pump features 316L and medical-grade polymer flow paths delivering exceptional biocompatibility. Employing low-shear transfer technology, it greatly reduces physical damage to the conveyed medium. The unique zero-dead-space quick-disconnect design with complete fluid-path isolation from mechanical components eliminates contamination retention and leakage risks. Furthermore, this pump supports full-process CIP/SIP (Clean-in-Place/Sterilization-in-Place), meeting the requirements of stringent application scenarios such as biopharmaceuticals.
Key Features and Benefits
Constructed with 316L stainless steel and medical-grade TPV composite materials. Materials comply with the following standards:
-USP Class VI Certified Plastics, compliant with USP <87> and USP <88> Biological Reactivity Testing
-Compliant with USP <381> Elastomeric Closure Testing for Physicochemical Properties
-Compliant with USP <788> Particulate Matter Testing
-Compliant with FDA regulations CFR 177. 2600 for contact with aqueous food
-Patented pump head design reduces fluid pulsation and protects shear-sensitive media
-Patented diaphragm structure with a continuous operation life of over 1000h
-Modular design enables quick component replacement with low labor costs
Product Applications
Supporting systems: ultrafiltration system, filtration system, chromatography system, fermentation system, homogenization system, reactor system, etc.
Suitable for processes such as liquid preparation, filtration, ultrafiltration, chromatographic separation, cultivation, degradation, etc.
Product Specifications
AliFit® DP 30
| Flow Rate Maximum | 30.0 lph (0.500 lpm) |
| Flow Rate Minimum | 0.9 lph (0.015 lpm) |
| Operating Pressure | Temperature of Fluid＜40℃（104°F） 6bar（87 psi） Temperature of Fluid＞40℃（104°F） 4bar（58 psi） |
| Maximum Temperature | Fluid 80℃（176°F）, CIP 90℃ (194°F), SIP 130℃ (266°F), Autoclave 130℃ (266°F) |
| Maximum Rotational Speed | 1200 rpm |
| Maximum Dry Suction Lift (Tested with purified water at 25℃) | 10%pump speed：0.5m; 30%pump speed：1m; 50%pump speed：1.5m; 70%pump speed：2m; 100%pump speed：2m |
| Product wetted surface(approx.) | 69 cm² |
| Filling volume without connectors | 6.6 ml |
| Approx.flow volume per rotation af free output | 0.51 ml/r |
| Residual volume (Horizontal direction of the flow path) | 5 ml |
| Connection Specification | 1/4” TC |
| Pump Dimension(L×W×H) | 278mmX170mmX178mm |
| Pump Weight | 7.0 kg |
| Power | 100 W |
| Voltage | AC230V 50Hz；AC110V 60Hz |
| Product Wetted Materials (Standard) | Pump Housing：316L ；Pump Connector：316L；Valve Plate：316L Diaphragms：TPV；Valves：Silicone；O-rings：Silicone |
AliFit® DP 100
| Flow Rate Maximum | 100 lph (1.667 lpm) |
| Flow Rate Minimum | 0.3 lph (0.005 lpm) |
| Operating Pressure | Temperature of Fluid＜40℃（104°F） 6bar（87 psi） Temperature of Fluid＞40℃（104°F） 4bar（58 psi） |
| Maximum Temperature | Fluid 80℃（176°F）; CIP 90℃ (194°F); SIP 130℃ (266°F); Autoclave 130℃ (266°F) |
| Maximum Rotational Speed | 2100 rpm |
| Maximum Dry Suction Lift (Tested with purified water at 25℃) | 10%pump speed：1m; 30%pump speed：2m; 50%pump speed：2.5m; 70%pump speed：2.5m; 100%pump speed：2.5m |
| Product wetted surface(approx.) | 133 cm² |
| Filling volume without connectors | 18 ml |
| Approx.flow volume per rotation af free output | 0.91 ml/r |
| Residual volume (Horizontal direction of the flow path) | 5 ml |
| Connection Specification | 3/8” TC |
| Pump Dimension(L×W×H) | 285mmX170mmX178mm |
| Pump Weight | 8.2 kg |
| Power | 100 W |
| Voltage | AC230V 50Hz；AC110V 60Hz |
| Product Wetted Materials (Standard) | Pump Housing：316L ；Pump Connector：316L；Valve Plate：316L Diaphragms：TPV；Valves：Silicone；O-rings：Silicone |
AliFit® DP 180
| Flow Rate Maximum | 180.0 lph (3.000 lpm) |
| Flow Rate Minimum | 0.6 lph (0.010 lpm) |
| Operating Pressure | Temperature of Fluid＜40℃（104°F） 6bar（87 psi） Temperature of Fluid＞40℃（104°F） 4bar（58 psi） |
| Maximum Temperature | Fluid 80℃（176°F）; CIP 90℃ (194°F); SIP 130℃ (266°F); Autoclave 130℃ (266°F) |
| Maximum Rotational Speed | 1800 rpm |
| Maximum Dry Suction Lift (Tested with purified water at 25℃) | 10%pump speed：1m; 30%pump speed：2m; 50%pump speed：2.5m; 70%pump speed：2.5m; 100%pump speed：2.5m |
| Product wetted surface(approx.) | 133 cm² |
| Filling volume without connectors | 18 ml |
| Approx.flow volume per rotation af free output | 1.62 ml/r |
| Residual volume (Horizontal direction of the flow path) | 5 ml |
| Connection Specification | 3/8” TC |
| Pump Dimension(L×W×H) | 285mmX170mmX178mm |
| Pump Weight | 8.2 kg |
| Power | 100 W |
| Voltage | AC230V 50Hz；AC110V 60Hz |
| Product Wetted Materials (Standard) | Pump Housing：316L ；Pump Connector：316L；Valve Plate：316L Diaphragms：TPV；Valves：Silicone；O-rings：Silicone |
AliFit® DP 800
| Flow Rate Maximum | 800.0 lph (13.333 lpm) |
| Flow Rate Minimum | 3.6 lph (0.060 lpm) |
| Operating Pressure | Temperature of Fluid＜40℃（104°F） 6bar（87 psi） Temperature of Fluid＞40℃（104°F） 4bar（58 psi） |
| Maximum Temperature | Fluid 80℃（176°F）; CIP 90℃ (194°F); SIP 130℃ (266°F); Autoclave 130℃ (266°F) |
| Maximum Rotational Speed | 1400 rpm |
| Maximum Dry Suction Lift (Tested with purified water at 25℃) | 10%pump speed：1.5m; 30%pump speed：2m; 50%pump speed：2.5m; 70%pump speed：2.5m; 100%pump speed：2.5m |
| Product wetted surface(approx.) | 385 cm² |
| Filling volume without connectors | 94 ml |
| Approx.flow volume per rotation af free output | 6.28 ml/r |
| Residual volume (Horizontal direction of the flow path) | 10 ml |
| Connection Specification | 3/4” TC |
| Pump Dimension(L×W×H) | 450mmX211mmX228mm |
| Pump Weight | 24 kg |
| Power | 750 W |
| Voltage | AC230V 50Hz；AC110V 60Hz |
| Product Wetted Materials (Standard) | Pump Housing：316L ；Pump Connector：316L；Valve Plate：316L Diaphragms：TPV；Valves：Silicone；O-rings：Silicone |
AliFit® DP 1200
| Flow Rate Maximum | 1200.0 lph (20.000 lpm) |
| Flow Rate Minimum | 6.9 lph (0.115 lpm) |
| Operating Pressure | Temperature of Fluid＜40℃（104°F） 6bar（87 psi） Temperature of Fluid＞40℃（104°F） 4bar（58 psi） |
| Maximum Temperature | Fluid 80℃（176°F）; CIP 90℃ (194°F); SIP 130℃ (266°F); Autoclave 130℃ (266°F) |
| Maximum Rotational Speed | 1800 rpm |
| Maximum Dry Suction Lift (Tested with purified water at 25℃) | 10%pump speed：2m; 30%pump speed：3.5m; 50%pump speed：4.5m; 70%pump speed：4.5m; 100%pump speed：4.5m |
| Product wetted surface(approx.) | 385 cm² |
| Filling volume without connectors | 94 ml |
| Approx.flow volume per rotation af free output | 11.18 ml/r |
| Residual volume (Horizontal direction of the flow path) | 10 ml |
| Connection Specification | 3/4” TC |
| Pump Dimension(L×W×H) | 450mmX211mmX228mm |
| Pump Weight | 24 kg |
| Power | 750 W |
| Voltage | AC230V 50Hz；AC110V 60Hz |
| Product Wetted Materials (Standard) | Pump Housing：316L ；Pump Connector：316L；Valve Plate：316L Diaphragms：TPV；Valves：Silicone；O-rings：Silicone |
Performance Charts
AliFit® DP 30

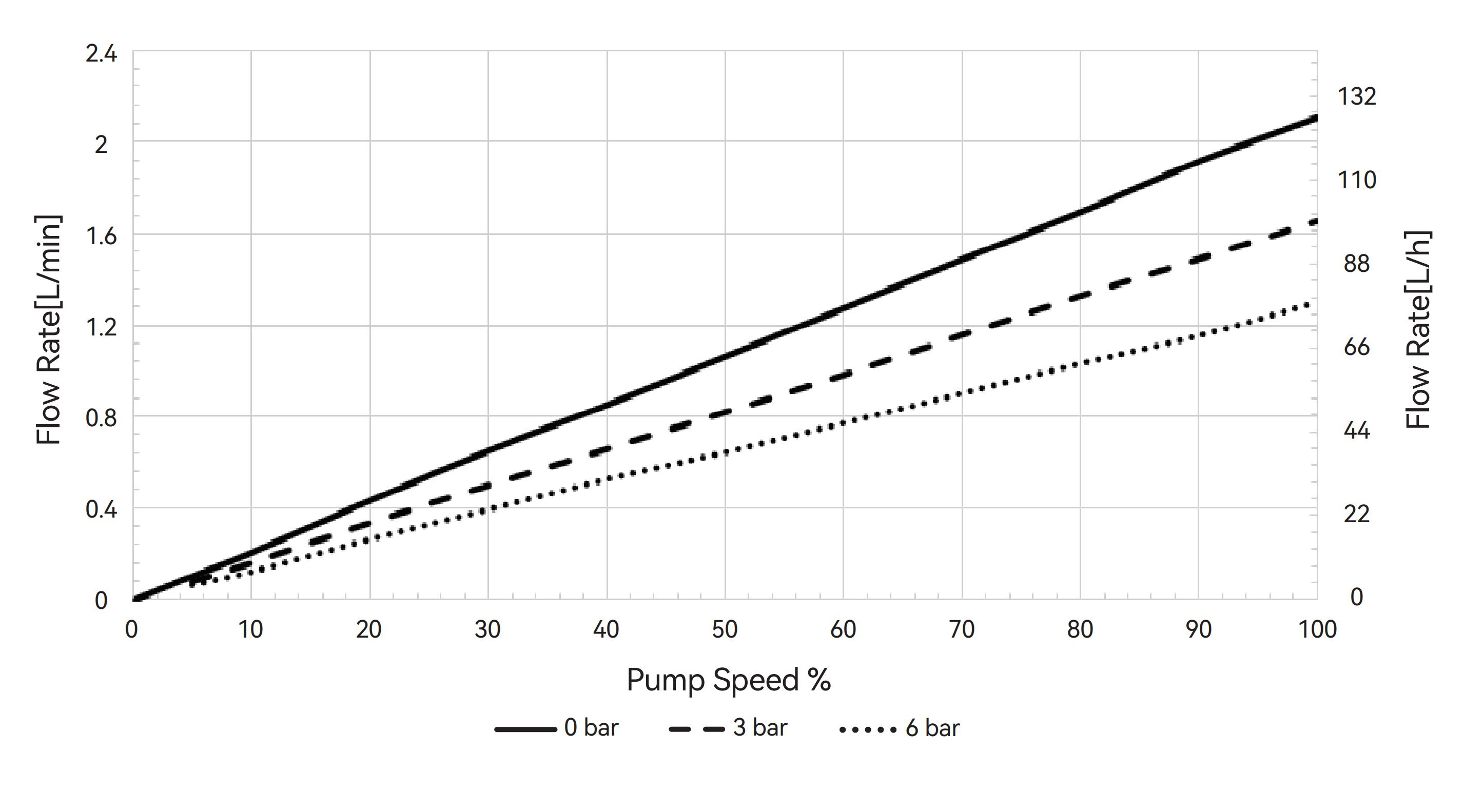

AliFit® DP100
AliFit® DP180

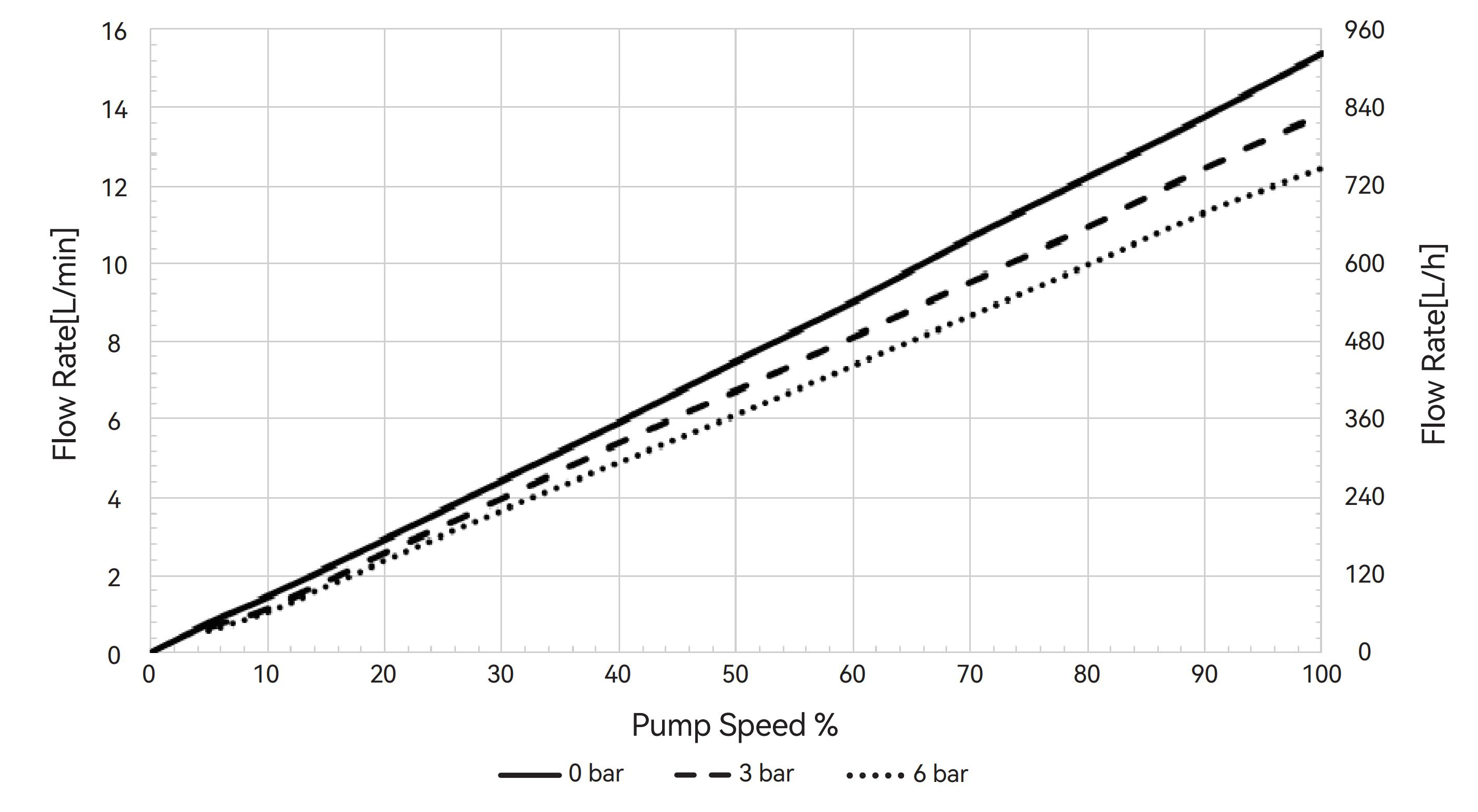

AliFit® DP800
AliFit® DP1200
Accessories Information
Accessories Information
| Type | Accessories & Maintenance Kits | |||||
| Description | Part No. | Description | Part No. | Description | Part No. | |
| AliFit® DP30 | Eccentric Shaft Assembly | DPSS0030ESU | Dedicated Maintenance Kit | DPSS0030DMP | Membrane & Unidirectional Valve Seal Kit | DPSS0030DSU |
| AliFit® DP100 | DPSS0100ESU | DPSS0100DMP | DPSS0100DSU | |||
| AliFit® DP180 | DPSS0300ESU | DPSS0300DMP | DPSS0300DSU | |||
| AliFit® DP800 | DPSS0600ESU | DPSS0600DMP | DPSS0600DSU | |||
| AliFit® DP1200 | DPSS1000ESU | DPSS1000DMP | DPSS1000DSU | |||
订购信息
Format
- PU=Pump
Quantity
- 1=1 Set
Pump Type
- D=Diaphragm pump
Pump Flow Rate
- 0030=0.9-30.0 I/h
- 0100=0.3-100.0 I/h
- 0180=0.6-180.0 I/h
- 0800=3.6-800.0 I/h
- 1200=6.9-1200.0 I/h
System
- IC=Stand-alone Pump
Specification
- 1=Pump only
