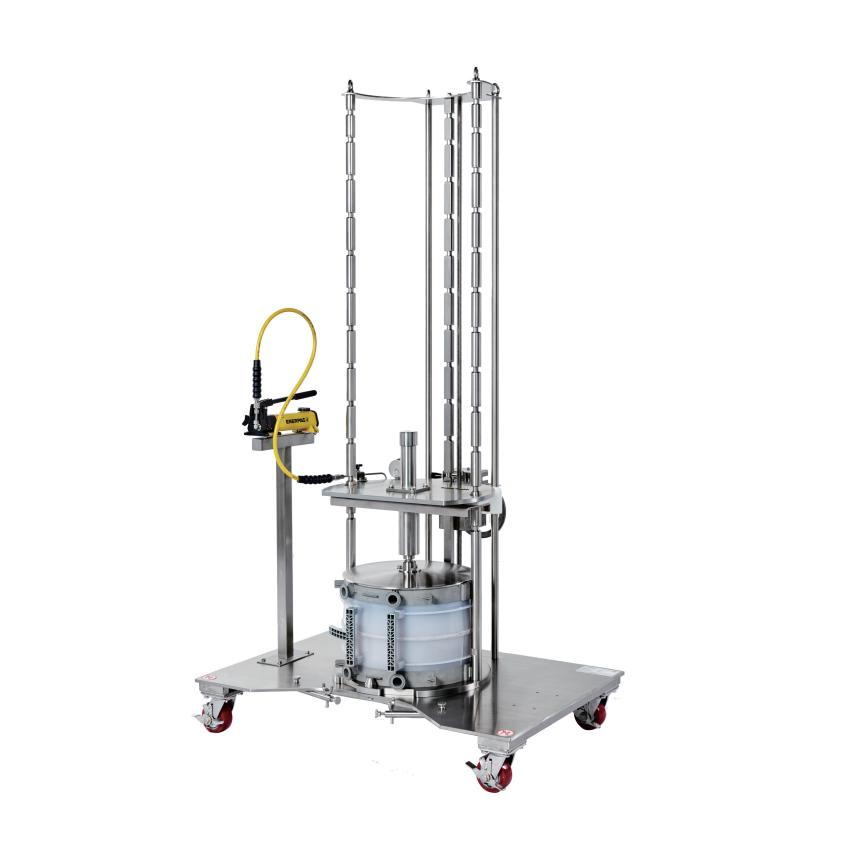

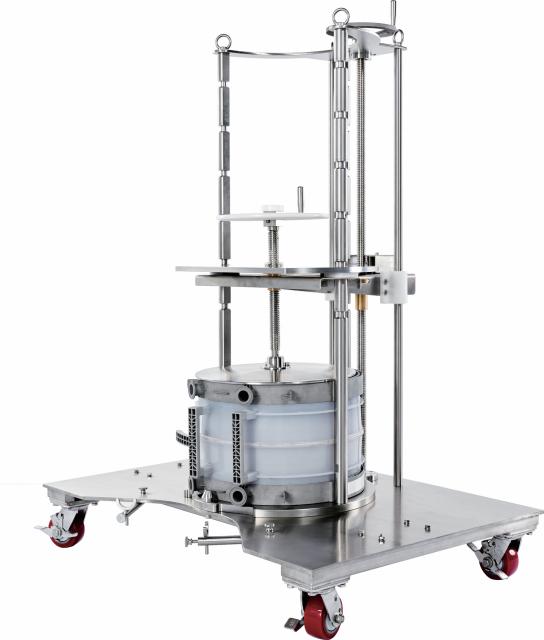

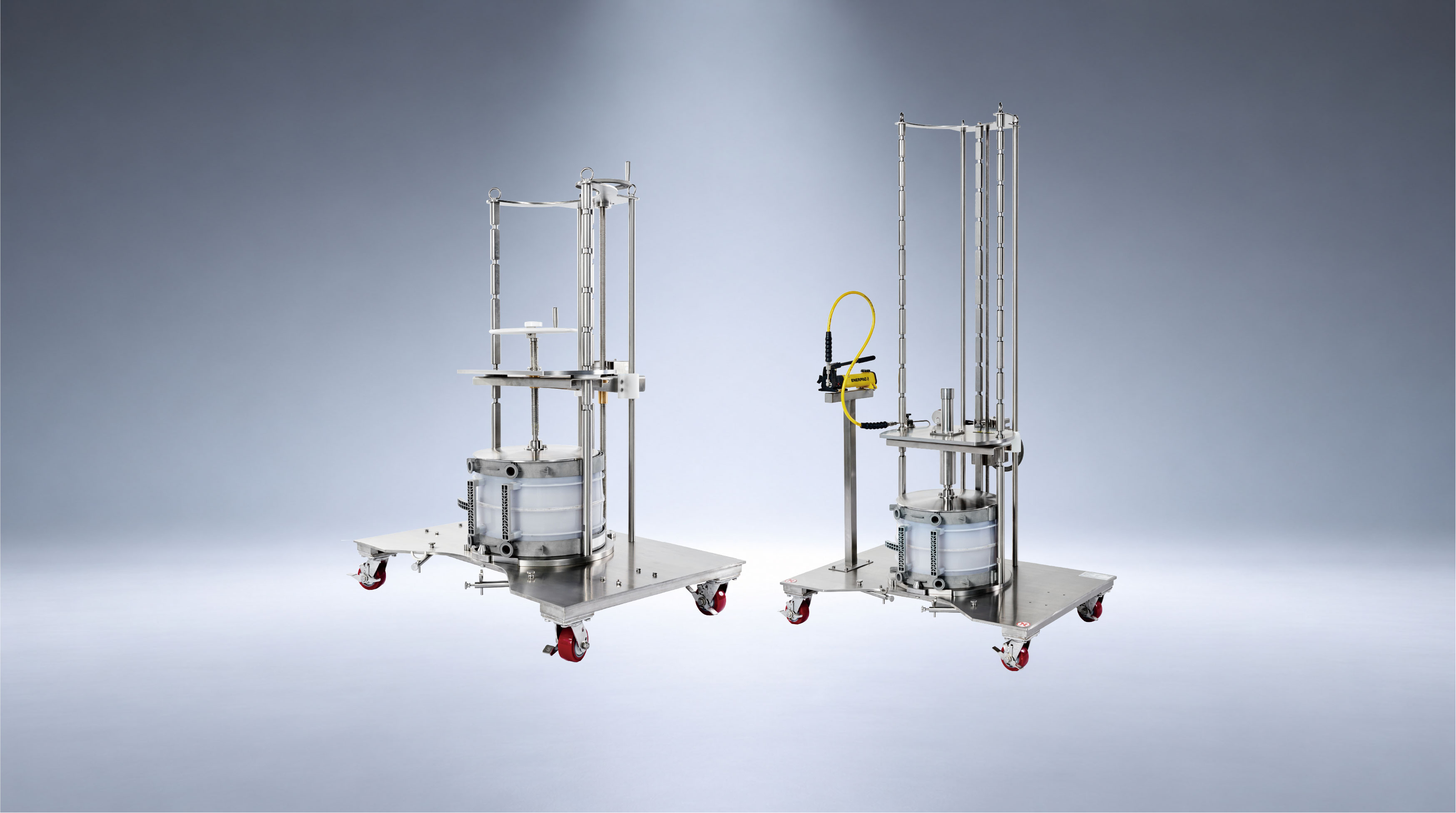

Depth Filter Holder, P Type
Alioth stainless steel depth filter holder P type is commonly used in deep depth filtration process. It is used to clamp depth filter holder of a specific area. With the help of a specific power source, it allows liquid to pass through the deep depth filter, thus achieving the purpose of separating impurities such as solid particles from liquid.
Made from 316L stainless steel, it is compatible with different types of liquids and meets the special requirements of pharmaceutical industry. The equipment is simple, structurally robust, and easy to install and use. Its vertical design contributes to a small footprint. It is also compatible with round cake-type depth filter holder commonly seen in the market. Different holding capacities greatly facilitate pharmaceutical customers to make flexible choices at different stages.
Key Features and Benefits
Product Applications
Product Specifications
Product Specifications
| Type | Hydraulic filter holder | Manual filter holder | ||
| Dimension (length × width × height) | 115x94x223 cm (10 m2 filter holder, with a large baseplate) | 115x82x156 cm (5 m2 filter holder, with a large baseplate) | 115x94x223 cm (10 m2 filter holder, with a large baseplate) | 115x82x156 cm (5 m2 filter holder, with a large baseplate) |
| Data for reference only, dimensions subject to drawings | ||||
| Weight | 170-180 kg | 170-180 kg | ||
| Surface Finish | Surface finish Ra<1.2 μm, liquid-contacting surface finish Ra<0.6 μm | |||
| Equipment Frame | SS 304 | |||
Ordering Information
Ordering Information
| Order No. | Product description | Package |
| DFHBGP05-1 | Depth Filter Holder P Type, with the ability of holding 1-5 filter holders, and without manual hydraulic pump | 1/PK |
| DFHBGP05-2 | Depth Filter Holder P Type, for holding 1-5 filter holders, with manual hydraulic pump | 1/PK |
| DFHBGP10-1 | Depth Filter Holder P Type, with the ability of holding 1-10 filter holders, and without manual hydraulic pump | 1/PK |
| DFHBGP10-2 | Depth Filter Holder P Type, with the ability of holding 1-10 filter holders, and with manual hydraulic pump | 1/PK |
Resource Downloads
Alioth Stainless Steel Depth Filter Holder P Type.pdf
PDF · 1.7 MB · Published on 2026-05-11
