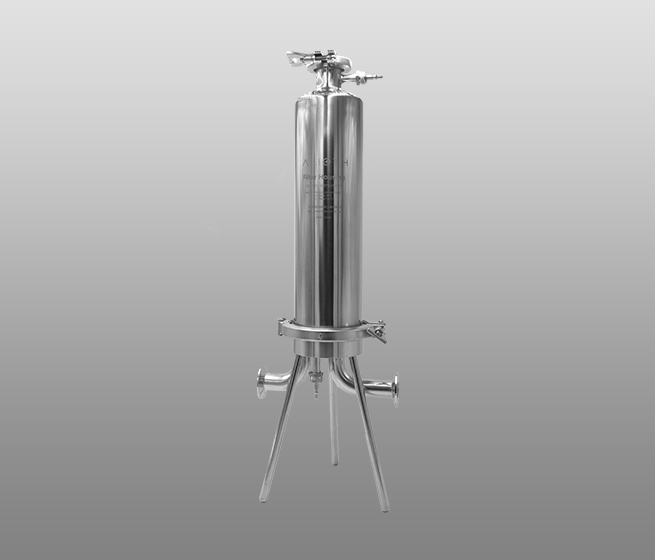

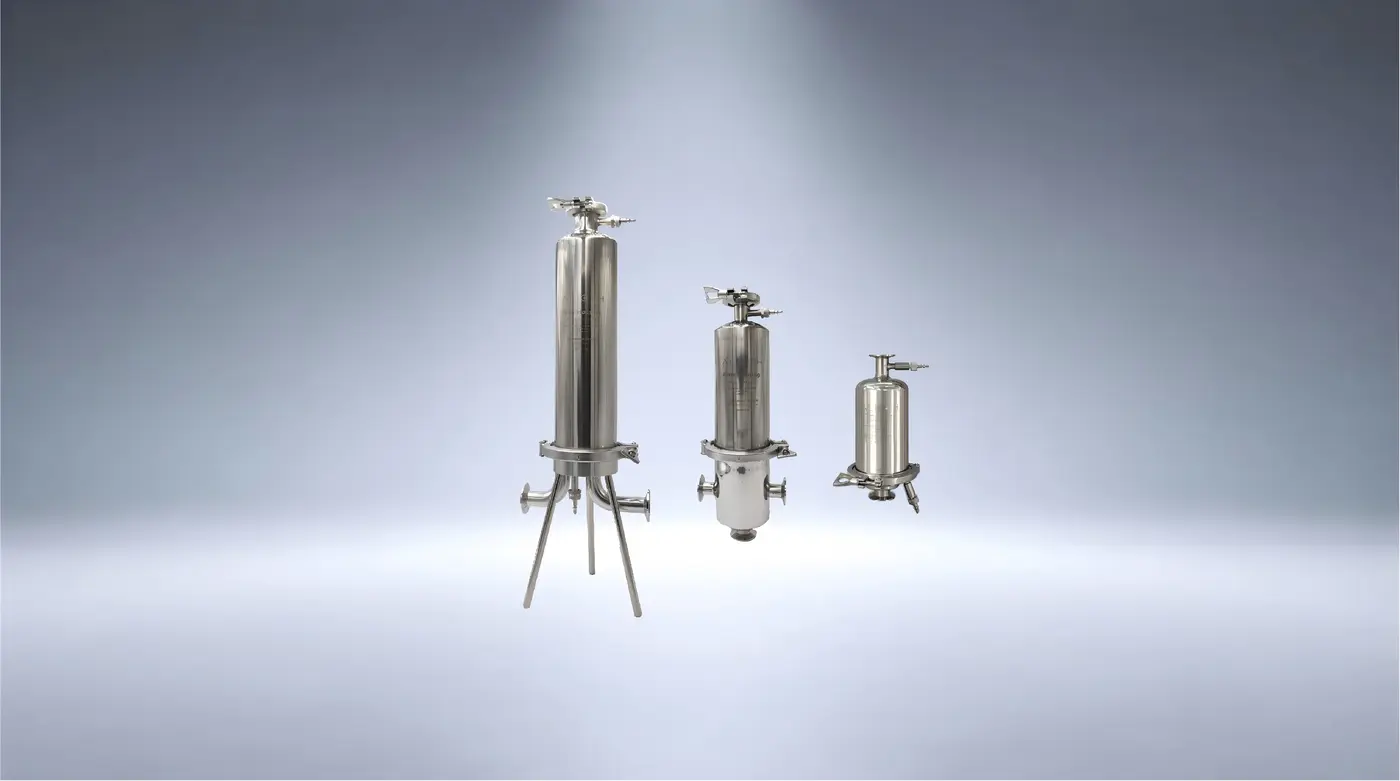

Stainless Steel Filter Housing
Alioth stainless steel filter housing is designed according to sanitary requirements and GMP requirements. Combined with various materials of diaphragms and various sizes of cartridge filters produced by Alioth, it can be flexibly used at different stages of different processes in different industries. It is extremely easy to clean and drain, poses no concerns about residual liquid, and can meet the strict requirements of key material liquid and key parts for filter housing in biopharmaceutical industry. It can also be widely used in industries such as pharmaceuticals, bioengineering, food and beverages. At the same time, this filter housing is compatible with different brands of cartridge filters in the market, greatly facilitating customers to make flexible choices.
Key Features and Benefits
Applications
Documentation Package
Specifications
Specifications
| Material | Filter housing: 316L stainless steel Gasket: Silicone rubber Hoop: 304 stainless steel |
| Filter Connector Type | Code 7/2-226 |
| Sterilization | Available for steam sterilization in place or high-pressure moist heat sterilization |
| Finish | Internal polishing≤0.6 μm; external polishing≤0.8 μm |
| Size of Loadable Filter | 2.5 inch/5 inch/10 inch/20 inch/30 inch |
| Size/Weight | Please refer to the drawings of products with different article numbers for details |
| Number of Loadable Filters | 1 cartridge, 3 cartridges, 5 cartridges ※ (7 cartridges, 9 cartridges, 11 cartridges please contact sales personnel for customization ) |
| Maximum Operating Conditions | 25°C @ 10 bar; 145°C @ 3.2 bar |
订购信息
- HS=Stainless Steel Filter Housing
- HSP=Stainless Steel Filter Housing P Type
- 1=1 cartridge
- 3=3 cartridges
- 5=5 cartridges
- T=T line
- N=In line
- C=C line
- 02=2.5 inch
- 05=5 inch
- 10=10 inch
- 20=20 inch
- 30=30 inch
- 7=226 Spearhead with fins
- 8=222 Spearhead with fins
- A=1" pipe, 50.5 TC
- B=1.5" pipe, 50.5 TC
- C=2" pipe, 64 TC
- V=Vent valve
- N=None
- V=Drain valve
- N=None
- 1=1/PK
Information on Spare Parts
- 1.5-inch stainless steel hoop
- 1.5-inch silicone gasket
- 1.5-inch diaphragm pressure gauge
- 1.5-inch stainless steel stuffy cover
- Stainless steel vent valve assembly
- 50 mm TC to 14 mm hose connector
