0.2 μm Sterilizing-Grade PTFE Gas Disc Filters
The Alioth Alipore® TAHF Series features a hydrophobic and chemically inert PTFE (polytetrafluoroethylene) filter membrane. Through rigorous liquid bacteria retention validation, the product effectively retains microorganisms and particles even in wet or humid gas streams. Engineered for high mechanical strength, it withstands repeated steam-in-place (SIP) sterilization cycles.
The TAHF Series is ideal for sterile gas filtration and the filtration of organic solvents with stringent quality requirements in pharmaceutical applications.
Key Features and Benefits
Natural hydrophobic material
High gas flux and low-pressure drop
Reliable bacterial/particles removal efficiency
Excellent chemical compatibility
Typical Applications
Sterile gas filtration
Sterile filtration of organic solvents vent
Product Specifications
Alidisk® Disc Filters
| Product Specifications | Size (Diameter) | 50 mm |
| Materials of Construction | Membrane | Hydrophobic Polytetrafluoroethylene (PTFE) |
| Supporting Layer/ Housing | Polypropylene (PP) | |
| Integrity Testing | Bubble Point | ≥1100 mbar（16 psi）(wetted with 60% IPA, 20℃, compressed air) |
| Working Characteristics | Maximum Differential Pressure | Forward: 5.0 bar（72.5 psi）@ 25°C |
| Reverse: 3.0 bar ( 43.5 psi）@ 25°C | ||
| Sterilization Resistance | Autoclave(A): 125℃, 60min, 30 cycles *Capsule filters can't be sterilized by SIP, sterile type capsule filters can't be sterilized again | |
| Effective Filtration Area | 18 cm2 | |
| Pore Size | 0.2 μm | |
| Bacterial Retention | ﹥107 cfu/cm2 B. diminuta ( ATCC® 19146TM ) | |
| Biological Safety | All construction components meet the biological safety requirements refering to USP<88> Class VI plastic and USP<87> | |
| Indirect Food Additive | All component materials meet the requirements of Indirect Food Additive cited in EU 1935/2004/EC and FDA 21 CFR 177-182 | |
| Cleanliness | Meets the requirements for a 'non-fiber releasing' filter defined in FDA 21 CFR 211.72 and 210.3 (b) (5) (6), and particulate matter meets the requirements of USP<788> | |
| Endotoxin | Endotoxin﹤0.25 EU/mL by LAL test method, which complies with the requirements of USP<85> | |
| Manufacturing Integrity | 100% integrity test passed | |
| Manufacturing Environment | Manufactured in conformance with cGMP |
Typical Flow Characteristics

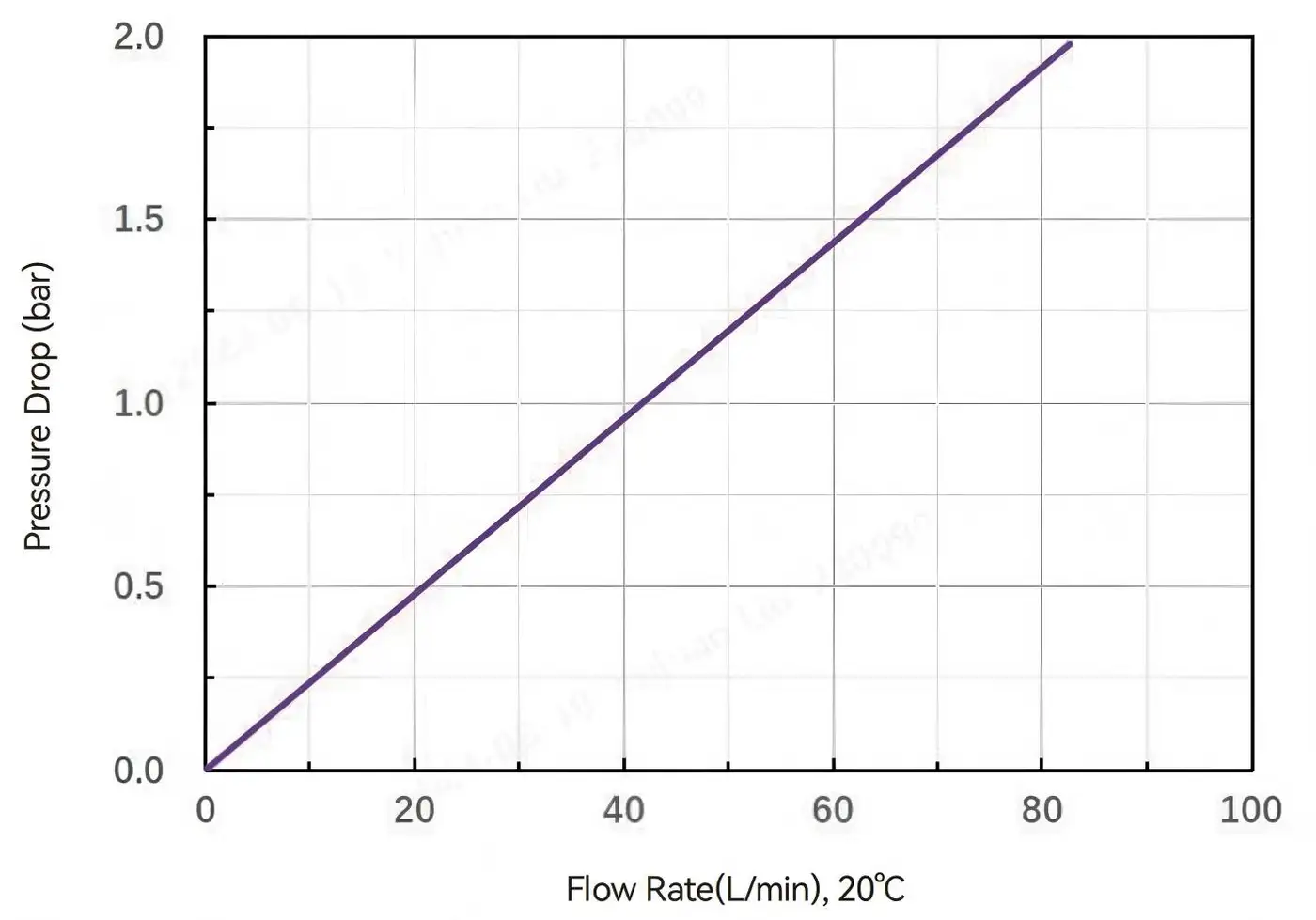

Air Flow Rate and Pressure Drop-Alipore® TAHF 0.2 μm Disc Filters
订购信息
Format
- D=Disc
Membrane material
- T=PTFE
Membrane series
- A=A series
Pore size
- 02=0.2 μm
Length
- 5=Diameter 50 mm
Disc adaptor
- B0=7-13 mm(1/4"-1/2") Hose barb inlet and outlet
Package
- 6=6/PK
Sterilization
- A=Autoclavable
Resource Downloads
Alipore® TAHF Sterilizing-Grade Hydrophobic PTFE Gas Disc Filter.pdf
PDF · 425.35 KB · Published on 2026-05-11
