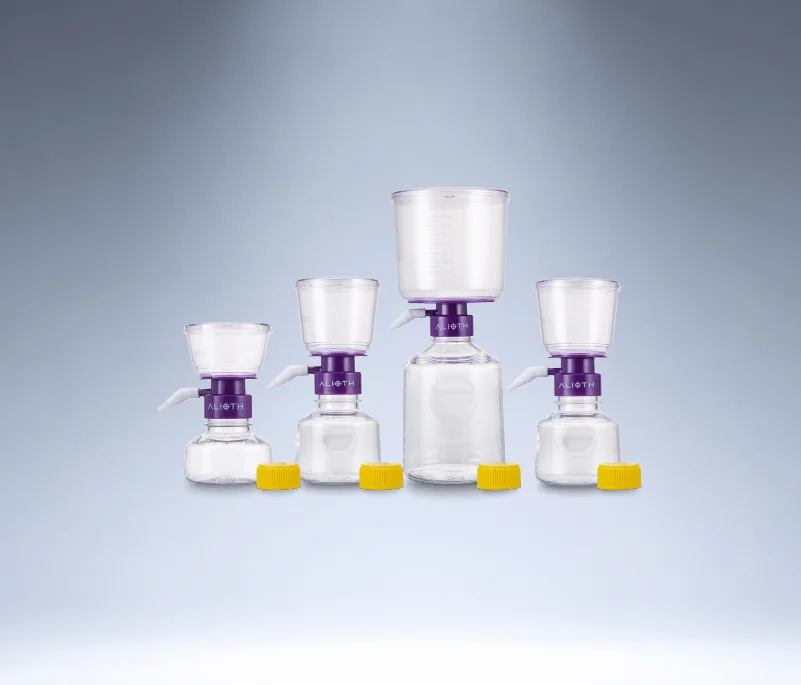

Disposable Vacuum Filtration Device
Key Features and Benefits
Available in 4 sizes: 150 mL/250 mL/500 mL/1000 mL, which can meet the requirements for handling different volumes of samples
Utilize the latest generation of highly asymmetric pharmaceutical- grade polyethersulfone (PES) sterilizing membrane
Low adsorption, high flow rate, and high capacity
The filtration device features high stability
The screw cap, hose connection, and other parts are ergonomically designed, enabling easy and effortless operation
The scales are accurate and easy to read
Individually packaged and subjected to gamma irradiation sterilization
Free from DNAse, RNAse, and pyrogen
Typical Applications
Cell media filtration
Buffer filtration
Protein intermediate filtration
Filtration of other biological samples and reagents
Structural Materials
Upper cup and collection bottle: Polystyrene(PS)
Vacuum port connector: Acrylonitrile-Butadiene-Styrene copolymer (ABS)
Bottle cap: Polyethylene(PE)
Membrane material: Polyethersulfone(PES)
The above materials all comply with the USP Class VI standard
Filtration of other biological samples and reagents
0.09 Mpa
Product Specifications
Product Specifications
| Volume ( mL ) | Filter membrane diameter ( mm ) | Working volume ( mL ) | Residual volume ( mL ) | Maximum operating temperature ( ℃ ) |
| 150 | 50 | 150 | 3 | 45 |
| 250 | 50 | 250 | 3 | 45 |
| 500 | 75 | 500 | 3 | 45 |
| 1000 | 91 | 1000 | 3 | 45 |
Filtration Performance Comparison
Alioth BrilliFlow® Disposable Vacuum Filtration Device exhibits superior overall performance in filtering high-, medium-, and low-turbidity materials, with a small residual volume
Filtration Performance Comparison
Filtration Performance Comparison
| Parameters | Alioth（500 mL） | Competitor A（500 mL） | Competitor B（500 mL） |
| Membrane material | PES | PES | PES |
| Diameter ( mm ) | 75 | 65 | 73 |
| Area ( cm2 ) | 44.2 | 33.2 | 40 |
| Measured retention volume ( mL ) | 3.21 | 1.97 | 4.7 |
订购信息
Format
- 8=Disposable vacuum filtration device (reservoir+filter accessories+ bottle cap)
Pore size
- 2=0.2 μm
- 4=0.45 μm
Type
- 150=150 mL
- 250=250 mL
- 500=500 mL
- 000=1000 mL
Ordering Information for Accessories
Format
- BT=Receiver
Type
- 150=150 mL
- 250=250 mL
- 500=500 mL
- 000=1000 mL
Format
- FC=Upper cup of disposable filter
Pore size
- 2=0.2 μm
- 4=0.45 μm
Type
- 150=150 mL
- 250=250 mL
- 500=500 mL
- 000=1000 mL
