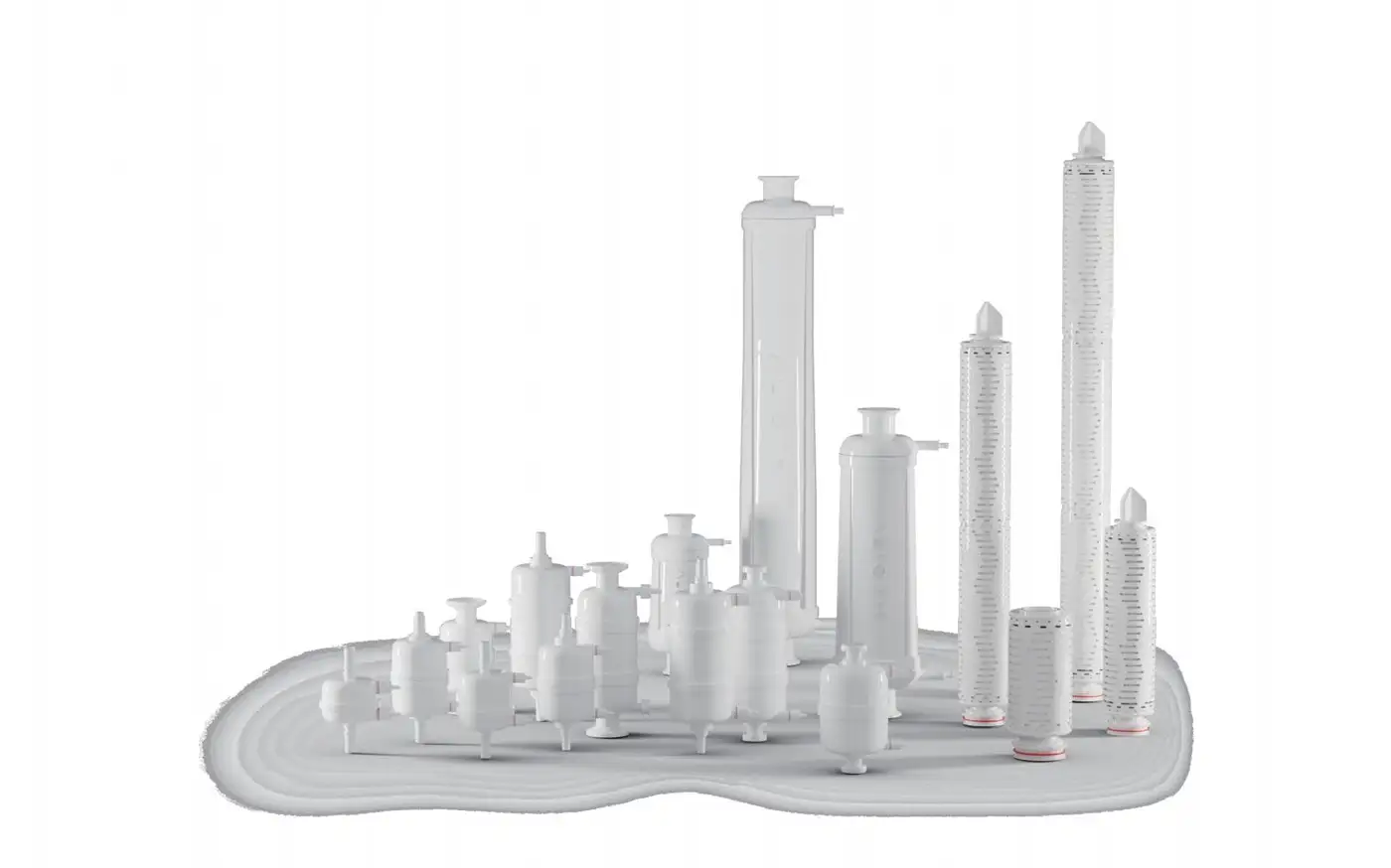

0.2 μm Radiation-Resistant PES Gas Filters
Alipore® TEHF Series filters consist of hydrophobic polyethersulfone (PES) membranes and have undergone rigorous liquid bacterial retention validation. They effectively retain microorganisms or particles in wet or humid gases, featuring high mechanical strength, radiation resistance, and tolerance to repeated autoclaving cycles. Ideal for sterile gas filtration in single-use systems for pharmaceutical applications, including sterilization of air, hydrogen, nitrogen, and other gases.
Key Features and Benefits
Hydrophobic material
Tolerance to 45 kGy gamma irradiation
Reliable bacterial retention and particle removal efficiency
High gas flux with low pressure differential
Excellent chemical compatibility
Typical Applications
Vent filter for single-use bags
Aeration of single-use reaction bags
Sterile filtration of gases (air/hydrogen/nitrogen, etc.)
Product Specifications
Alidisk® Disc Filters
| Product Specifications | Size (Diameter) | 50 mm |
| Materials of Construction | Membrane | Hydrophobic polyethersulfone (PES) |
| Supporting Layer/ Housing | Polypropylene (PP) | |
| Integrity Testing | Bubble Point | ≥1300 mbar（19 psi）(wetted with 60% IPA, 20℃, compressed air) |
| Working Characteristics | Maximum Differential Pressure | Forward: 5.0 bar（72.5 psi）@ 25°C |
| Sterilization Resistance | Reverse: 1.0 bar（14.5 psi）@ 25°C | |
| Sterilization Resistance | Gamma-compatible (G): 25-45 kGy Autoclave at 135℃ for 30 min, 50 cycles *Capsule filters can't be sterilized by SIP, sterile type capsule filters can't be sterilized again | |
| Effective Filtration Area | 18 cm2 | |
| Pore Size | 0.2 μm | |
| Bacterial Retention | ﹥107 cfu/cm2 B. diminuta ( ATCC® 19146TM ) | |
| Biological Safety | All construction components meet the biological safety requirements refering to USP<88> Class VI plastic and USP<87> | |
| Indirect Food Additive | All component materials meet the requirements of Indirect Food Additive cited in EU 1935/2004/EC and FDA 21 CFR 177-182 | |
| Cleanliness | Meets the requirements for a 'non-fiber releasing' filter defined in FDA 21 CFR 211.72 and 210.3 (b) (5) (6), and particulate matter meets the requirements of USP<788> | |
| Endotoxin | Endotoxin﹤0.25 EU/mL by LAL test method, which complies with the requirements of USP<85> | |
| Manufacturing Integrity | 100% integrity test passed | |
| Manufacturing Environment | Manufactured in conformance with cGMP |
Alicap® Capsule Filters
| Product Specifications | L300 | L600 | L02 | L04 | L3 | L5 | L10 | L20 | L30 | T10 | T20 | T30 | |
| Body Diameter | 67 mm | 67 mm | 72 mm | 72 mm | 97 mm | 92 mm | 92 mm | 92 mm | 92 mm | 92 mm | 92 mm | 92 mm | |
| Maximum Width | 75 mm | 75 mm | 97 mm | 97 mm | 128 mm | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm | |
| Maximum Length | 98.5 mm | 120 mm | 161 mm | 214 mm | 170 mm | 211 mm | 330 mm | 575 mm | 830 mm | 350 mm | 596 mm | 851 mm | |
| Materials of Construction | Membrane | Hydrophobic polyethersulfone (PES) | |||||||||||
| Supporting Layer | Polypropylene (PP) | ||||||||||||
| O-rings | Silicone | ||||||||||||
| Core/Cage/End caps/Housing | Polypropylene (PP) | ||||||||||||
| Integrity Testing | Bubble Point | ≥1300 mbar（19 psi）(wetted with 60% IPA, 20℃, compressed air) | |||||||||||
| Diffusion Flow(mL/min) | Test pressure 1040 mbar (15 psi)（wetted with 60% IPA, 20℃, compressed air ） | ||||||||||||
| _ | ≤ 1.5 | ≤ 3.0 | ≤ 5.0 | ≤ 5.0 | ≤ 7.5 | ≤ 15 | ≤ 30 | ≤ 45 | ≤ 15 | ≤ 30 | ≤ 45 | ||
| Working Characteristics | Maximum Differential Pressure | Forward: 5.5 bar（79.8 psi）@ 25℃/3.0 bar（43.5 psi）@ 80℃ | |||||||||||
| Reverse: 4.0 bar（58.0 psi）@ 25℃/1.0 bar（14.5 psi）@ 80℃ | |||||||||||||
| Sterilization Resistance | Alicap® L300/L600/L02/L04/L3： Gamma compatible＆Autoclavable: 25-45 kGy gamma irradiation or 135°C autoclaving for 30 minute, for 30 cycles. *Capsule filters can't be sterilized by SIP, sterile type capsule filters can't be sterilized again | Alicap® L5/L10/L20/L30/T10/T20/T30： Gamma compatible＆Autoclavable: 25-45 kGy gamma irradiation or 135°C autoclaving for 30 minute, for 50 cycles. *Capsule filters can't be sterilized by SIP, sterile type capsule filters can't be sterilized again | |||||||||||
| Effective Filtration Area | 230cm2 | 430 cm2 | 0.11 m2 | 0.19 m2 | 0.19 m2 | 0.30 m2 | 0.59 m2 | 1.18 m2 | 1.77 m2 | 0.59 m2 | 1.18 m2 | 1.77 m2 | |
| Pore Size | 0.2 μm | ||||||||||||
| Bacterial Retention | ﹥107 cfu/cm2 B. diminuta ( ATCC® 19146TM ) | ||||||||||||
| Biological Safety | All construction components meet the biological safety requirements refering to USP<88> Class VI plastic and USP<87> | ||||||||||||
| Indirect Food Additive | All component materials meet the requirements of Indirect Food Additive cited in EU 1935/2004/EC and FDA 21 CFR 177-182 | ||||||||||||
| Cleanliness | Meets the requirements for a 'non-fiber releasing' filter defined in FDA 21 CFR 211.72 and 210.3 (b) (5) (6), and particulate matter meets the requirements of USP<788> | ||||||||||||
| Endotoxin | Endotoxin﹤0.25 EU/mL by LAL test method, which complies with the requirements of USP<85> | ||||||||||||
| Manufacturing Integrity | 100% integrity test passed | ||||||||||||
| Manufacturing Environment | Manufactured in conformance with cGMP | ||||||||||||

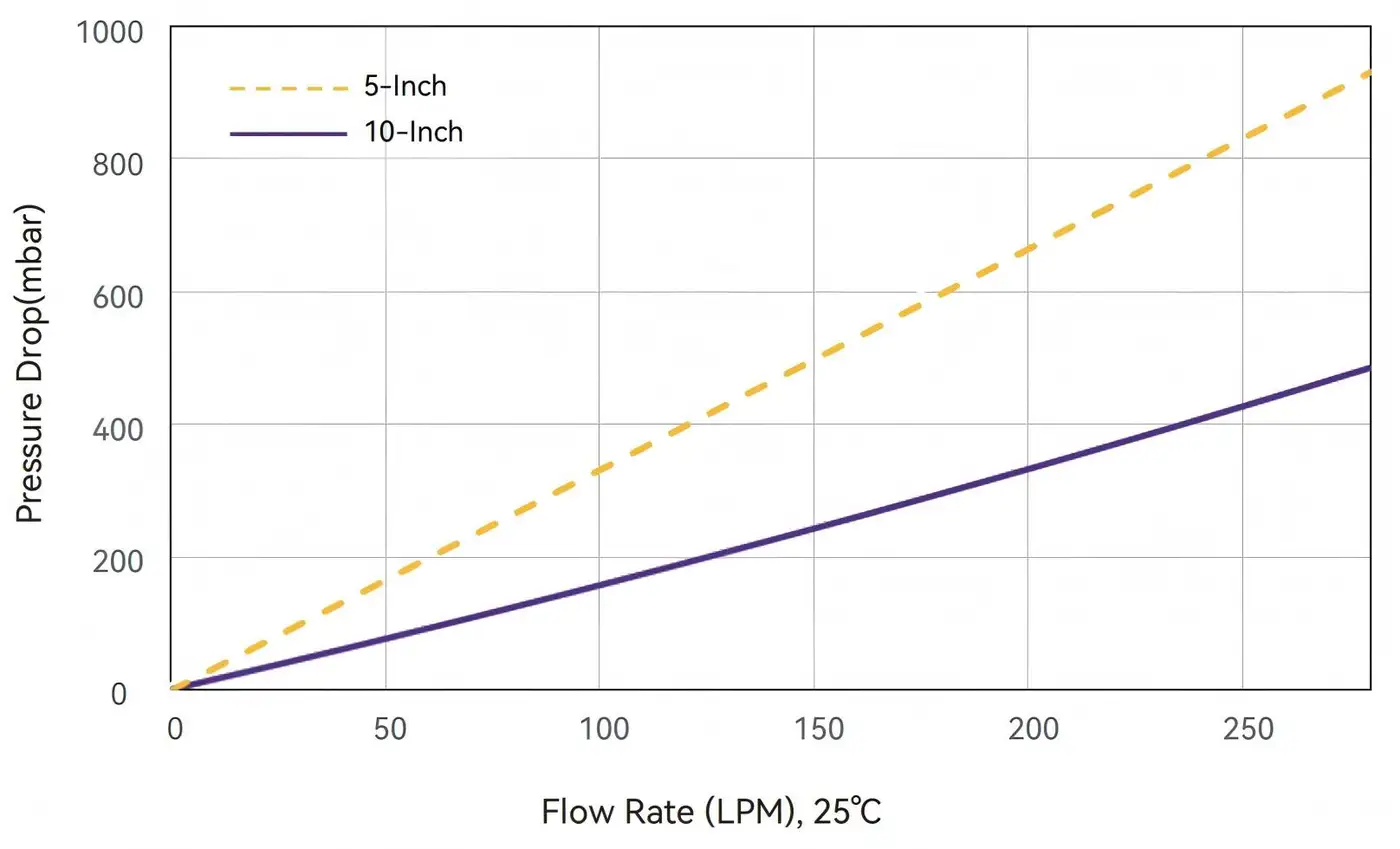

Typical Flow Characteristics
Air Flow Rate and Pressure Drop-Alipore® TEHF Alicap® L5/L10 0.2 μm Capsule Filters
Ordering Information-Alidisk® Disc Filters
Format
- D=Disc
Membrane material
- E=PES
Membrane series
- E=E series
Pore size
- 02=0.2 μm
Length
- 5=Diameter 50 mm
Disc adaptor
- B0=7-13 mm(1/4"-1/2") Hose barb inlet and outlet
Package
- 6=6/PK
Sterilization
- G=Gamma compatible
- S=Sterile
Ordering Information-Alicap® Capsule Filters
Connector: Alicap® L300/L600, available with B6 Connector; Alicap® L02/L04, available with T1, T3, B5, B7 Connector; Alicap® L3/L5/L10/L20/L30, available with B4, T1 Connector; Alicap® T10/T20/T30, available with T1 Connector.
Format
- K=L-type Capsule
- T=T-type Capsule
Membrane material
- E=PES
Membrane series
- E=E series
Pore size
- 02=0.2 μm
Length
- S2: Alicap® L300
- S3: Alicap® L600
- M1: Alicap® L02
- M3: Alicap® L04
- L3: Alicap® L3
- 5: Alicap® L5
- 1: Alicap® L10/T10
- 2: Alicap® L20/T20
- 3: Alicap® L30/T30
Capsule connector
- T1: 38 mm(1 1/2") Sanitary flange inlet and outlet
- T3: 19 mm(3/4") Sanitary flange inlet and outlet
- B4: 13 mm(1/2") Single-stage hose inlet and outlet
- B5: 9.6 mm(3/8") Multistage hose inlet and outlet
- B6: 7-13 mm(1/4"-1/2") Hose barb inlet and outlet
- B7: 6 mm(1/4") Multistage hose inlet and outlet
O-ring
- S = Silicone
Package
- 1=1/PK
Sterilization
- G=Gamma compatible
- S=Sterile
