0.2 μm PES Cartridges Filter
Alioth Alipore® DHF Single-layer Cartridge Filter is a 0.2 μm single-layer polyethersulfone (PES) filter that can efficiently retain bacteria and particulate contaminants. It has wide chemical compatibility and low leaching level, thus suitable for the bioburden control and pre-filtration of various fluids. It can provide more effective protection at different stages of bioprocess, prolonging the service life of sterilizing filters and safeguarding other processing systems. This filter is produced in a controlled environment, and its manufacturing process conforms to ISO9001 quality system standards. Each cartridge filter undergoes an integrity testing during the process of manufacturing.
Key Features and Benefits
High flow rate, high capacity
Bioburden control
Resistance to multiple steam sterilization
Wide chemical compatibility
Typical Applications
Terminal sterilization product
Intermediate products filtration
Pre-column protective filtration
Pre-filtration before final sterile filtration, etc.
Product Specifications
Product Specifications
| Product Specifications | 5 inch | 10 inch | 20 inch | 30 inch | |
| Diameter | 69 mm | 69 mm | 69 mm | 69 mm | |
| Maximum Length | 155 mm | 318 mm | 566 mm | 813 mm | |
| Materials of Construction | Membrane | Hydrophilic polyethersulfone (PES) | |||
| Supporting Layer | Polypropylene (PP) | ||||
| O-rings | Silicone, Ethylene propylene diene monomer(EPDM), FEP/PFA encapsulated O-rings | ||||
| Core/Cage/End caps/Adaptor | Polypropylene (PP) | ||||
| Integrity Testing | Bubble Point | ≥3180 mbar（46 psi）(wetted with H2O, 20℃, compressed air） | |||
| Working Characteristics | Maximum Differential Pressure | Forward: 5.0 bar（72.5 psi）@ 25℃/1.5 bar（21.75 psi）@ 80℃ Reverse: 2.0 bar（29 psi）@ 25℃ | |||
| Sterilization Resistance | Steam-In-Place: 135℃, 30 min,10 cycles Autoclave: 135℃, 30 min, 20 cycles | ||||
| Effective Filtration Area | 0.32 m2 | 0.66 m2 | 1.32 m2 | 1.98 m2 | |
| Pore Size | 0.2 μm | ||||
| Bacterial Retention | TR﹥10*6 B. diminuta ( ATCC® 19146TM ) | ||||
| Biological Safety | All construction components meet the biological safety requirements refering to USP<88> Class VI plastic and USP<87> | ||||
| Indirect Food Additive | All component materials meet the requirements of Indirect Food Additive cited in EU 1935/2004/EC and FDA 21 CFR 177-182 | ||||
| Cleanliness | Meets the requirements for a 'non-fiber releasing' filter defined in FDA 21 CFR 211.72 and 210.3 (b) (5) (6), and particulate matter meets the requirements of USP<788> | ||||
| Endotoxin | Endotoxin﹤0.25 EU/mL by LAL test method, which complies with the requirements of USP<85> | ||||
| TOC/Conductivity | TOC﹤0.5 mg/L, Conductivity﹤1.3 μS/cm | ||||
| Manufacturing Integrity | 100% integrity test passed | ||||
| Manufacturing Environment | Manufactured in conformance with cGMP | ||||
Typical Flow Characteristics

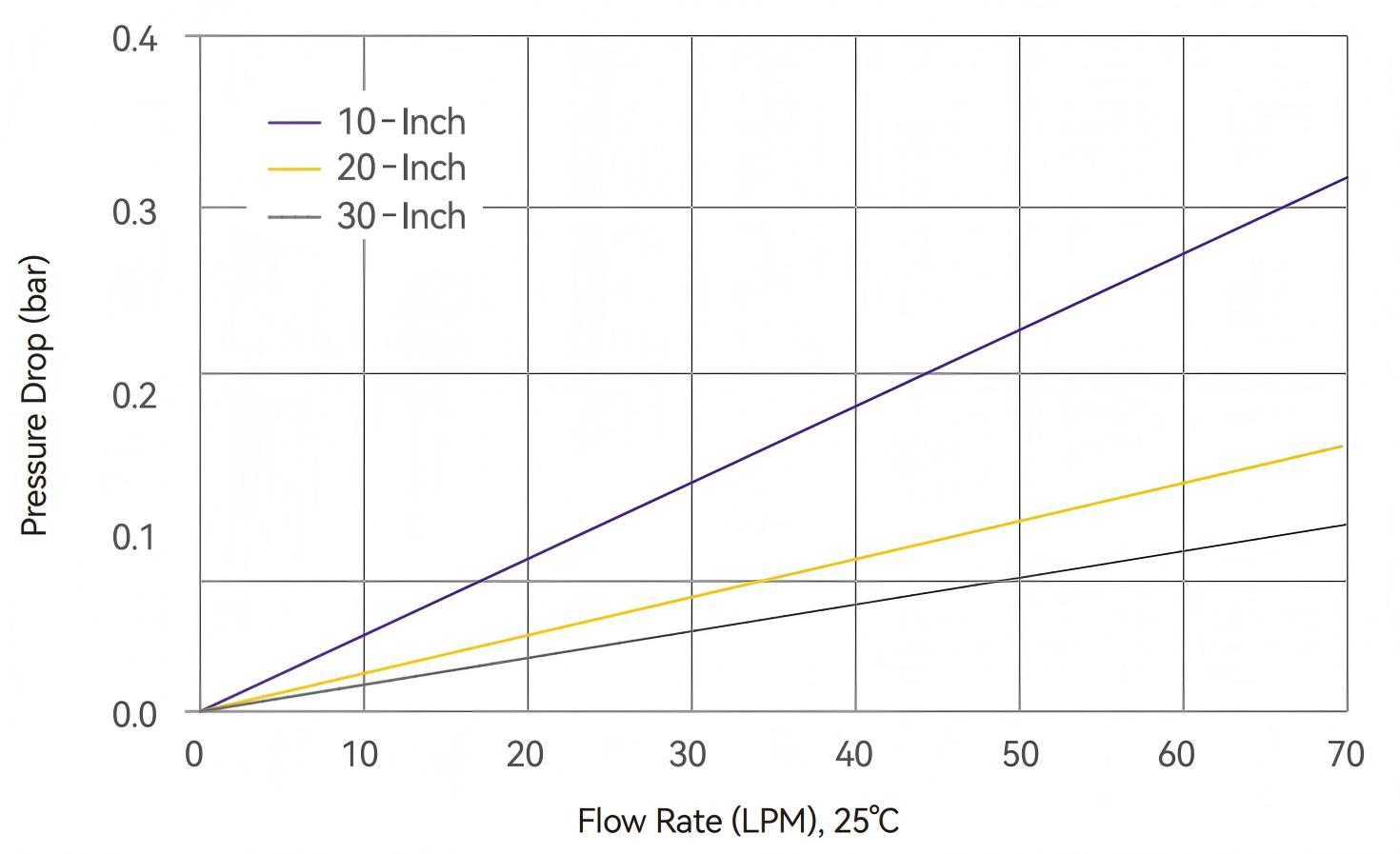

Water Flow Rate and Pressure Drop-Alipore® DHF 0.2 μm Cartridge Filters
Ordering Information
Format
- C=Cartridge
Membrane material
- E=PES
Membrane series
- D=D series
Pore size
- 02=0.2 μm
Length
- 5=5 inch
- 1=10 inch
- 2=20 inch
- 3=30 inch
Catridge adaptor
- 7=226, Spearhead with fins
- 2=226, Flat end with fins(5 inch)
O-ring
- S=Silicone
- T=EPDM
- B=FEP/PFA encapsulated O-rings
Package
- 1=1/PK
- 3=3/PK (20&30 inch)
Resource Downloads
Alipore® DHF High-Throughput Hydrophilic PES Filter.pdf
PDF · 914.51 KB · Published on 2026-05-11
